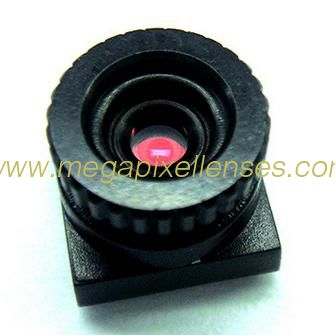

1/7" 2mm F2.8 Megapixel M7*0.35 mount non-distortion lens, plastic 2mm video lens

1/7" 2mm F2.8 Megapixel M7*0.35 mount non-distortion lens, plastic 2mm video lens

    • 1/7" 2mm F2.8 Megapixel M7*0.35 mount non-distortion lens, plastic 2mm video lens
    • 1/7" 2mm F2.8 Megapixel M7*0.35 mount non-distortion lens, plastic 2mm video lens
    • 1/7" 2mm F2.8 Megapixel M7*0.35 mount non-distortion lens, plastic 2mm video lens
  • 1/7" 2mm F2.8 Megapixel M7*0.35 mount non-distortion lens, plastic 2mm video lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 17020MP-M7 17020MPF-M7

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M7 Mount Non-distortion Optical Lens Resolution: Megapixel
    F.O.V.(D*H*V): 68°*52°*33° Lens Constructure: 4P/4P+IR
    Highlight:

    megapixel non-distortion lens

    ,

    megapixel M7 mount lens

    ,

    wide angle low-distortion lens

    1/7" 2.0mm F2.8 Megapixel 68degree non-distortion M7*0.35 mount lens for digital cameras/computer/electronic video devices, 2mm M7 mount lens for 1/7" sensors



    Model: 17020MPF-M7
    SENSOR SIZE: 1/7"

    EFFECTIVE IMAGE CIRCLE: Φ3.0mm
    FOCAL LENGTH(mm): 2.0
    F.O.V.(D*H*V): 68
    °*52°*33°
    RESOLUTION: MP
    OPTICAL DISTORTION: <-1%
    APERTURE: F2.8 (infinity)
    MOUNT(mm): M7xP0.35
    IRIS: Fixed
    M.O.D.: 20mm
    F.B.L.(mm) 0.75
    T.T.L.(mm): 5.75

    R.I. 68%
    LENS COMPOMEMT: 4P+IR
    DIMENSION: Φ8.0x5.0mm



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - M7 mount lens holder available

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
