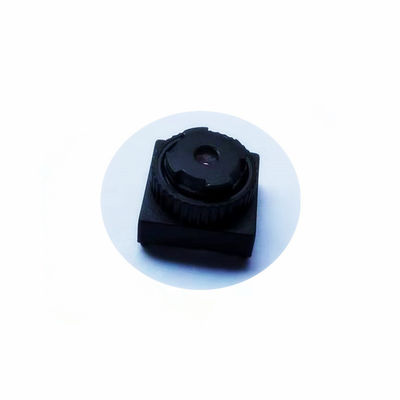

1/2.7" 4.8mm F2.2 Megapixel M7.5x0.35 mount low distortion mini camera lens, 4.8mm HD mini plastic lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127048MP-M7.5 127048MPF-M7.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7.5 Mount Mini Camera Lens | Resolution: | Megapixel |
|---|---|---|---|
| FOV: | 66° | Lens Constructure: | 4P/4P+IR |
1/2.7" 4.8mm F2.2 Megapixel 66degree low distortion M7.5*0.35 mount mini lens for mini DV camera/digital cameras/drone/electronic video devices, small lens for mini video camera
MODEL: 127048MPF-M7.5
SENSOR SIZE: 1/2.7"
MAX IMAGE CIRCLE: Φ6.85mm
FOCAL LENGTH(mm): 4.8
F.O.V.: 66°
RESOLUTION: MP
OPTICAL DISTORTION: <1%
C.R.A.: <22°
APERTURE: F2.2 (infinity)
MOUNT(mm): M7.5xP0.35
IRIS: Fixed
M.O.D.: 20cm
F.B.L.(mm) 1.4
T.T.L.(mm): 5.7
LENS COMPOMEMT: 4P+IR
DIMENSION: Φ6.8x4.3mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
