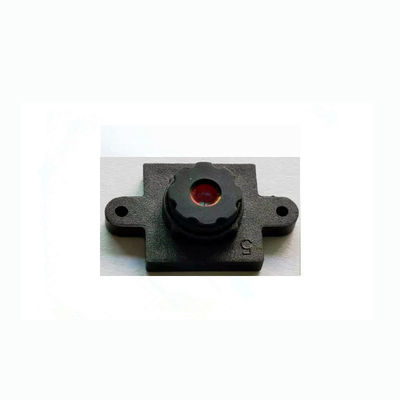

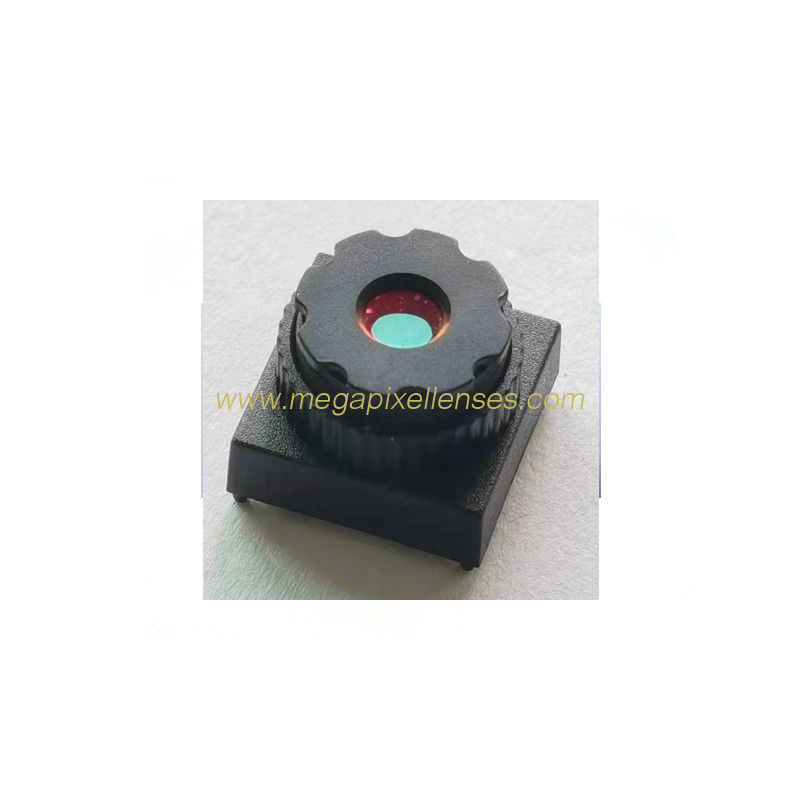

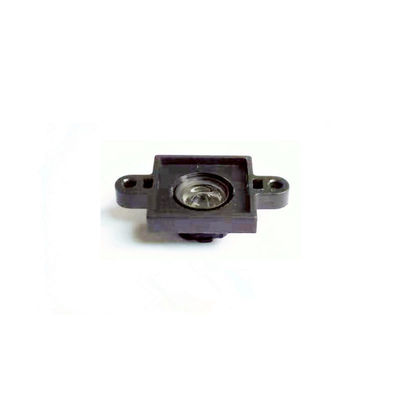

1/2.7" 4.3mm F2.2 Megapixel M8x0.35 mount low distortion mini camera lens, 4.3mm HD M8 mini plastic lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127043MP-M8 127043MPF-M8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M8 Mount Mini Camera Lens | Resolution: | Megapixel |
|---|---|---|---|
| FOV: | 70° | Lens Constructure: | 5P/5P+IR |
1/2.7" 4.3mm F2.2 Megapixel 70degree low distortion M8*0.35 mount mini lens for mini DV camera/digital cameras/drone/electronic video devices, M8 mount lens for mini video camera
MODEL: 127043MPF-M8
SENSOR SIZE: 1/2.7"
MAX IMAGE CIRCLE: Φ7.2mm
FOCAL LENGTH(mm): 4.3
F.O.V.: 70°
RESOLUTION: MP
OPTICAL DISTORTION: <1%
C.R.A.: 30°
APERTURE: F2.2 (infinity)
MOUNT(mm): M8xP0.35
IRIS: Fixed
M.O.D.: 20cm
F.B.L.(mm) 1.0
T.T.L.(mm): 5.6
LENS COMPOMEMT: 5P+IR
DIMENSION: Φ8.0x4.7mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
