1/2.7" 3.5mm F2.5 Megapixel M8x0.35 mount 88degrees low distortion mini camera lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127035MP-M8 127035MPF-M8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M8 Mount Mini Camera Lens | Resolution: | Megapixel |
|---|---|---|---|
| FOV: | 88°x80°x50° | Lens Constructure: | 5E |
1/2.7" 3.5mm F2.5 megapixel low distortion M8*0.35 mount mini lens for drone/mini DV camera/digital cameras/electronic video devices, M8 mount lens for mini video camera

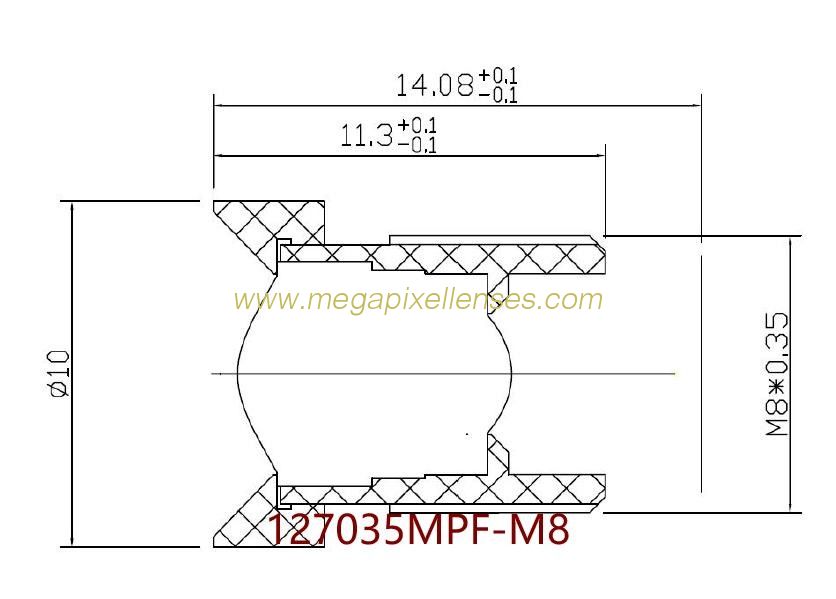

MODEL 127035MPF-M8
IMAGE FORMAT 1/2.7”
FOCAL LENGTH/EFL 3.5mm
Effective image diameter Φ6.90mm
F.O.V. (DxHxV) 88°x80°x50°
RESOLUTION MP
TV DISTORTION <-1.5%
APERTURE F2.5(INFINITY)
MOUNT M7X0.35P
CHIEF RAY ANGLE <22°
F.B.L. 2.78mm
T.T.L. 14.08mm
DIMENSION Φ10.0×11.30mm
CONSTRUCTION 4E
IR 645nm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
