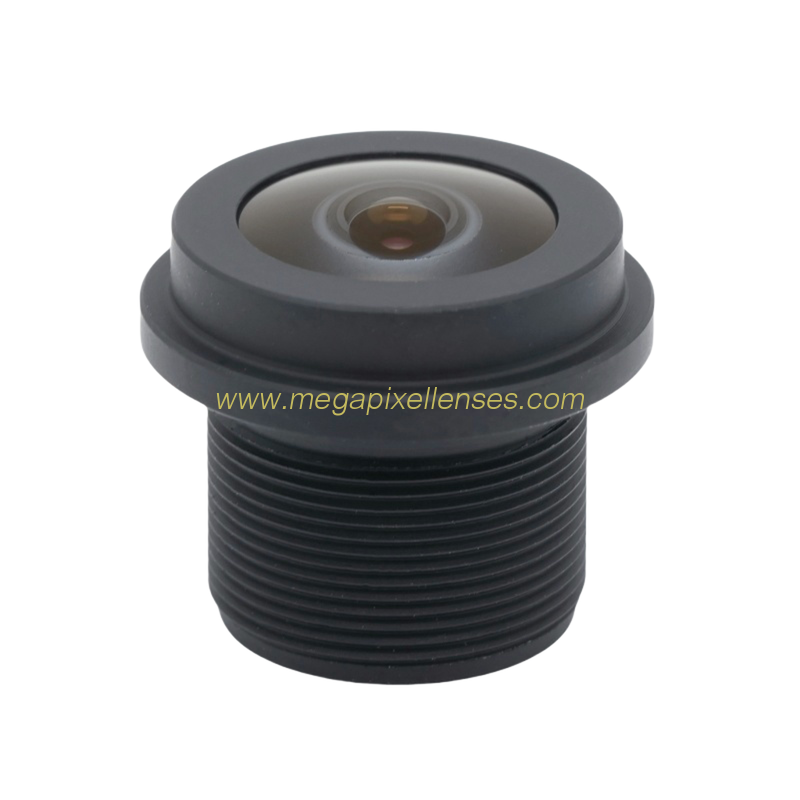

1/2.9" 2.6mm F2.5 Megapixel M12*0.5 mount 160degree wide angle lens for GC2053
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 129026MP-B 129026MPF-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
| Minimum Order Quantity: | 100pcs |
Detailed Product Description
1/2.9" 2.6mm F2.5 Megapixel S-mount M12 160degree wide-angle cctv lens for GC2053
MODEL 129026MPF-B
IMAGE FORMAT 1/2.9"
MAX IMAGE CIRCLE Ø6.57mm
FOCAL LENGTH 2.6mm
F.O.V (D*H*V) 160°*131.6°*68.2°
TV DISTORTION <-26.7%
RELATIVE ILLUMIMATION 55%
CRA <19.2°
APERTURE F2.5
RESOLUTION MP
MOUNT M12xP0.5
IRIS Fixed
B.F.L. 4.79mm
T.T.L. 17.9mm
DIMENSION Φ16x14.15mm
LENS COMPOMENT 4G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
