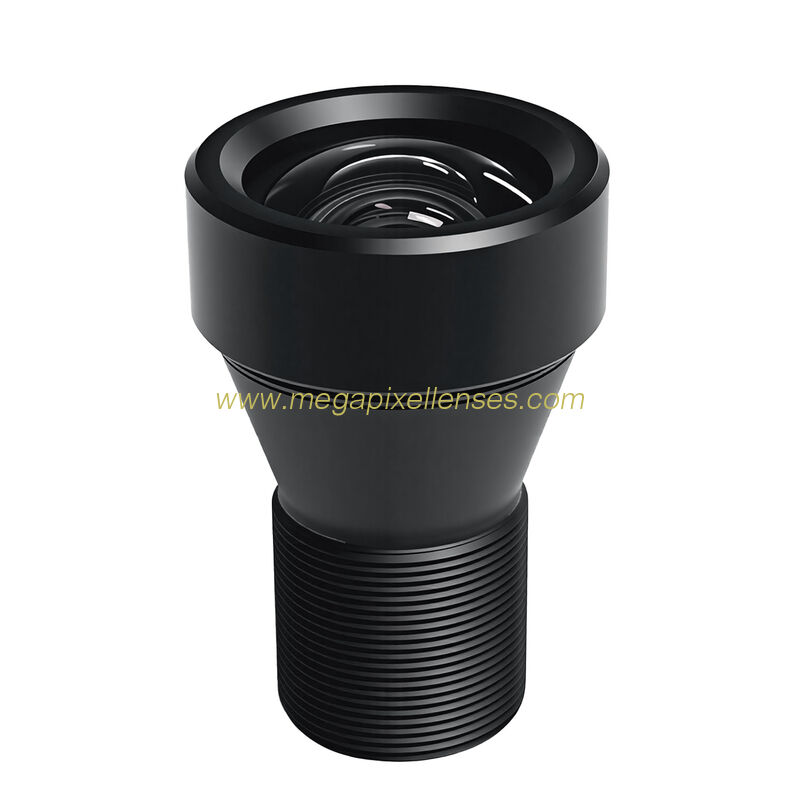

1/1.7" 7.54mm F1.65 8Megapixel 70Degree M12x0.5 mount board lens 4K S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1170754MP 1170754MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 8MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 70°*60°*37° | Lens Constructure: | 9G/9G+IR |
1/1.7" 7.54mm F1.65 8Megapixel 70D M12x0.5 mount board lens, 4K S mount cctv lens
MODEL: 1170754MPF
IMAGE FORMAT 1/1.7"
MAX IMAGE CIRCLE Φ9.5mm
FOCAL LENGTH(mm) 7.54
FOV: 70°(D)*60° (H)*37° (V)
RESOLUTION 8MP
APERTURE 1.65
OPTICAL DISTORTION
TV DISTORTION -20.5%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 3.53mm
T.T.L. 31mm
C.R.I. 21.8°
R.I. >55%
LENS DIMENSION Φ18*30.85mm
Structure 9G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
