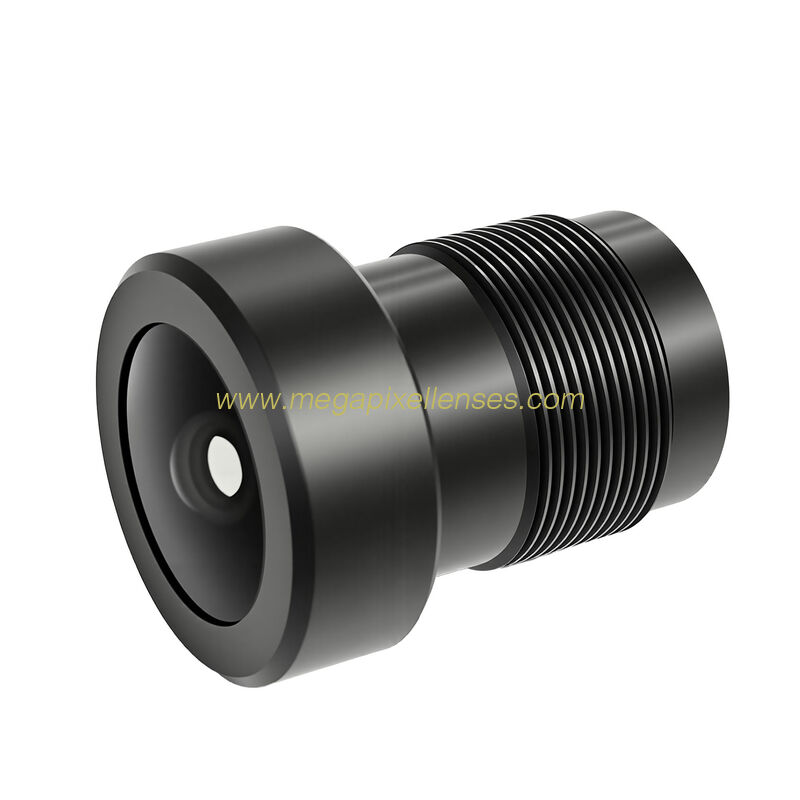

1/1.8" 3.83mm F2.0 8Megapixel 153Degree Wide Angle M12x0.5 mount board lens 4K S mount lens for IMX678
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1180383MP 1180383MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 8MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 153.8°*149.2°*124.8° | Lens Constructure: | 7G/7G+IR |
1/1.8" 3.83mm F2.0 8Megapixel 153.8D Wide-angle M12x0.5 mount board lens, 4K S mount cctv lens for IMX678
MODEL: 1180383MPF
IMAGE FORMAT 1/1.8"
MAX IMAGE CIRCLE Φ8.81mm
FOCAL LENGTH(mm) 3.83
FOV: 153.8°(D)*149.2° (H)*124.8° (V)
RESOLUTION 8.4MP
APERTURE 2.0
OPTICAL DISTORTION -
TV DISTORTION -24%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 2.52mm
B.F.L.: 3.96mm
T.T.L. 22mm
C.R.I. <12.1°
R.I. >45.8%
LENS DIMENSION Φ15*19.48mm
Structure 7G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
