CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions
Place of Origin: | China |
Brand Name: | CCOM LENS |
Model Number: | 117032MP 117032MPF |
Minimum Order Quantity: | 100pcs |
---|---|
Packaging Details: | Standard |
Delivery Time: | 2-7 work days |
Payment Terms: | T/T, Western Union, Moneygram, Paypal |
Supply Ability: | Samples available |
Video Lens: | M12 Mount Board Lens | Resolution: | 12MP |
---|---|---|---|
FOV(D*H*V): | 1/1.7" 160°*131°*99°; 1/1.8" 153.6°*129°*88°; 1/2.3" 126°*113.5°*83° | Lens Constructure: | 9G/9G+IR |

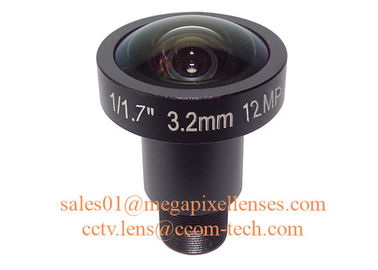

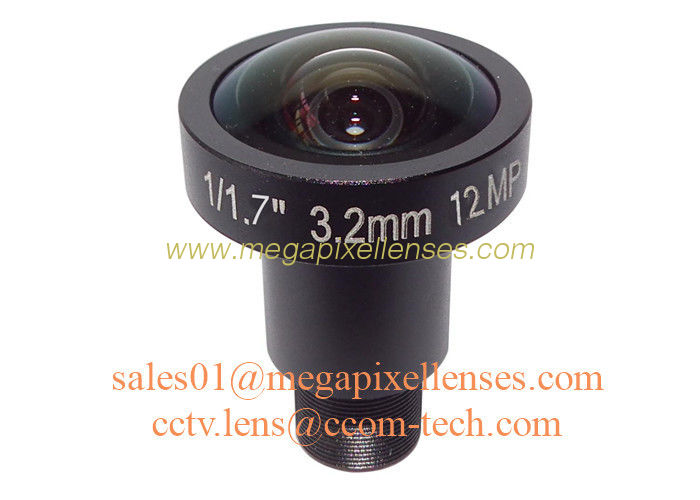

1/1.7" 1/1.8" 3.2mm F2.0 12Megapixel M12x0.5 mount IR wide angle lens, 4K ultra high resolution lens, M12 mount ultra high resolution wide angle cctv lens for 1/1.7", 1/1.8", 1/2.3" sensors
MODEL 117032MP
IMAGE FORMAT 1/1.7"
MAX IMAGE CIRCLE Φ8.7mm
FOCAL LENGTH(mm) 3.2
FOV(D*H*V): 1/1.7" 160°*131°*99°; 1/1.8" 153.6°*129°*88°; 1/2.3" 126°*113.5°*83°
RESOLUTION 12MP
APERTURE 2.0
OPTICAL DISTORTION -64%
MOUNT(mm) M12x0.5
IRIS Fixed
B.F.L. 6.14mm
M.B.F. 6.08mm
TTL(mm) 44.98
M.O.D.(m) 0.3
LENS DIMENSION Φ28*38.9mm
IR COLLECTION YES
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS/M12 mount option
