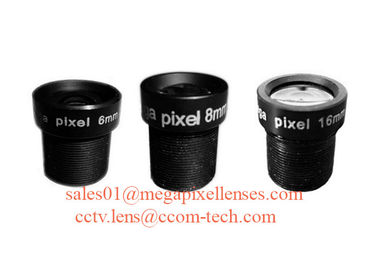

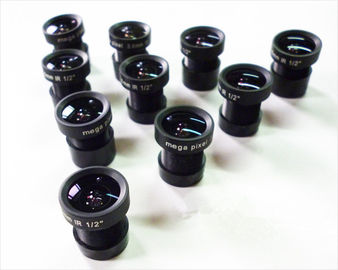

1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1/2" F2.0 3MP MTV series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
|---|---|---|---|
| Focal Length: | 3.6mm/6mm/8mm/16mm | Lens Constructure: | 5G/5G+IR |

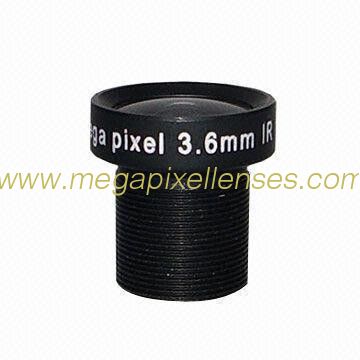

1/2" 3.6mm/6mm/8mm/16mm F2.0 1080P 3Megapixel S mount M12x0.5 Fixed Focal Lens for security cameras, MTV lens
Model 1203620MP-3MP
SENSOR 1/2" CCD/CMOS
FOCAL LENGTH 3.6mm
RESOLUTION 3MP
F.O.V.(D) 120°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5
B.F.L. 7.24mm
T.T.L. 23.86mm
LENS CONSTRUCTURE 5G
DIMENSION Φ16*16.6mm
Model 120620MP-3MP
SENSOR 1/2" CCD/CMOS
FOCAL LENGTH 6mm
RESOLUTION 3MP
F.O.V.(H) 67.4°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5
M.O.D. 0.3m
B.F.L. 7.81mm
T.T.L. 24.51mm
LENS CONSTRUCTURE 5G
DIMENSION Φ14*16.7mm
Model 120820MP-3MP
IMAGE FORMAT 1/2"
FOCAL LENGTH 8.0mm
F.O.V. (H) 53°
RESOLUTION 3 MP
APERTURE F2.0
MOUNT M12X0.5
IRIS Fixed
FOCUS Manual
DISTORTION -14%
B.F.L. 7.8mm
M.O.D. 0.3m
T.T.L. 25.8mm
LENS CONSTRUCTURE 5G
DIMENSION(mm) Φ14 x 18
Model 121620MP-3MP
IMAGE FORMAT 1/2"
FOCAL LENGTH 16mm
F.O.V.(H) 22.5°
RESOLUTION 3 MP
APERTURE F2.0
MOUNT M12X0.5
IRIS Fixed
FOCUS Manual
DISTORTION 1%
B.F.L. 6.93mm
M.O.D. 0.3m
T.T.L. 20.08mm
LENS CONSTRUCTURE 5G
DIMENSION(mm) Φ14 x 15.15
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS mount available
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
