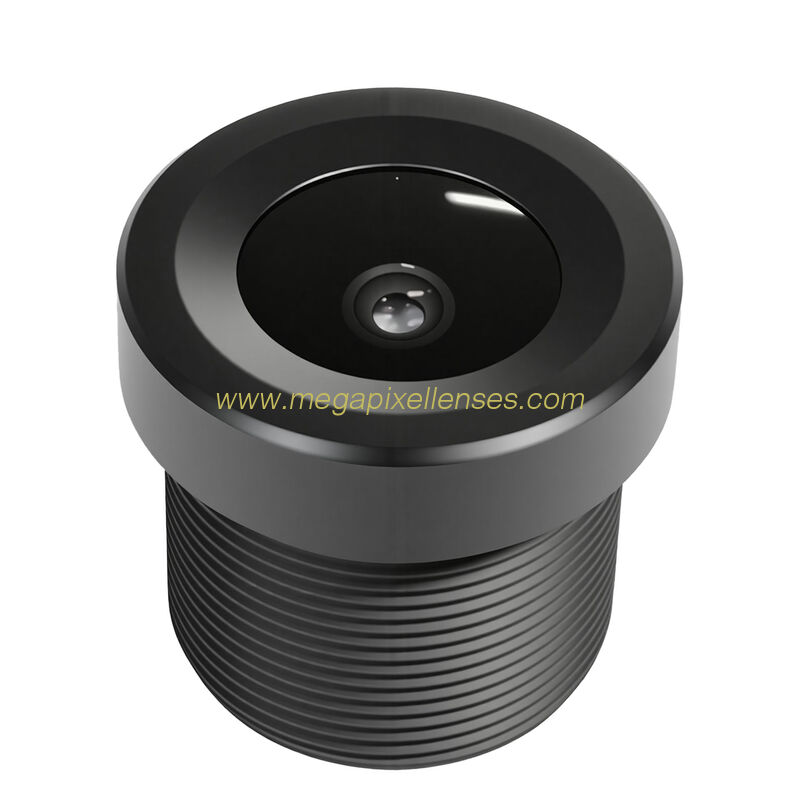

1/2.7" 6.03mm F2.8 Megapixel 70Degree M12x0.5 mount board lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1270603MP 1270603MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | MP |
|---|---|---|---|
| F.O.V.(D): | 70° | Structure: | 5G/5G+IR |
1/2.7" 6.03mm F2.8 Megapixel 70D M12x0.5 mount board lens, S mount cctv lens
MODEL: 1270603MPF
IMAGE FORMAT 1/2.7"
MAX IMAGE CIRCLE
FOCAL LENGTH(mm) 6.03
FOV(DxHxV) 70°x54°x40°
RESOLUTION MP
APERTURE 2.8
OPTICAL DISTORTION -17.7%
TV DISTORTION <-6.4%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 8.20mm
B.F.L. 9.30mm
T.T.L. 20.80mm
C.R.A. <11.8°
R.I. >76%
LENS DIMENSION Φ14*13.39mm
Structure 5G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
