CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions

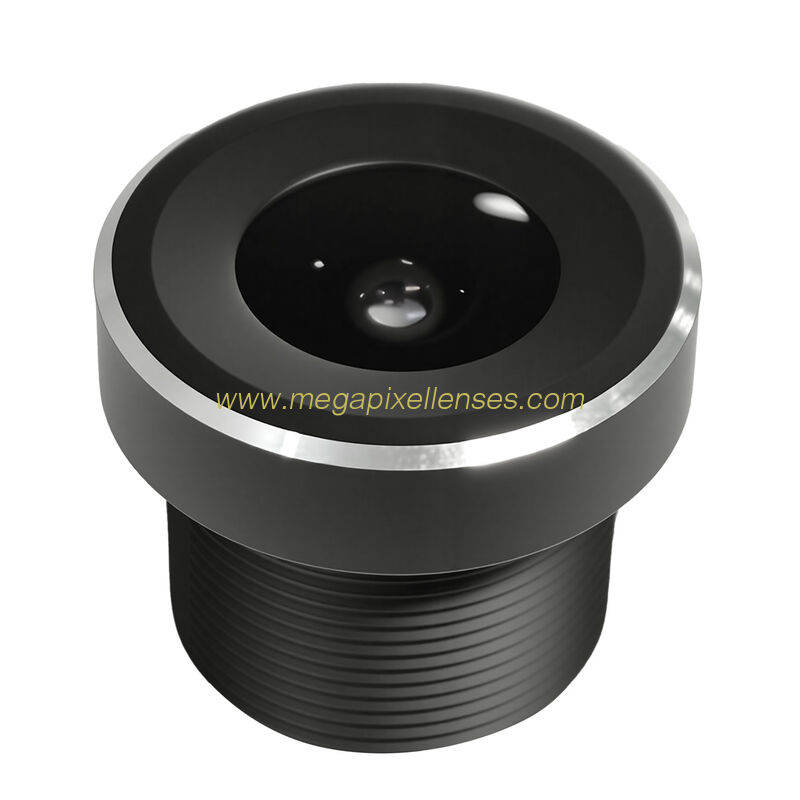

1/2.8" 3.06mm F2.0 2Megapixel 141Degree Wide Angle M12x0.5 mount board lens 1080P S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1280306MP 1280306MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 2MP |
|---|---|---|---|
| F.O.V.(D): | 141° | Structure: | 5G/5G+IR |
1/2.8" 3.06mm F2.0 2Megapixel 141D Wide-angle M12x0.5 mount board lens, 2MP S mount cctv lens for 1/2.8" 1/2.9" 1/3" & 1/4"
MODEL: 1280306MPF
IMAGE FORMAT 1/2.6"
MAX IMAGE CIRCLE Φ6.8mm
FOCAL LENGTH(mm) 3.06
FOV 141º(D)X114º(H)X61º(V)
RESOLUTION 2MP
APERTURE 2.0
OPTICAL DISTORTION -62%
TV DISTORTION -22.5%
MOUNT(mm) M12x0.5
IRIS Fixed
O.D. 0.4m
F.B.F.L. 4.64mm
B.F.L.
T.T.L. 17mm
R.I. >49%
C.R.A. <17º
LENS DIMENSION Φ15*12.4mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
