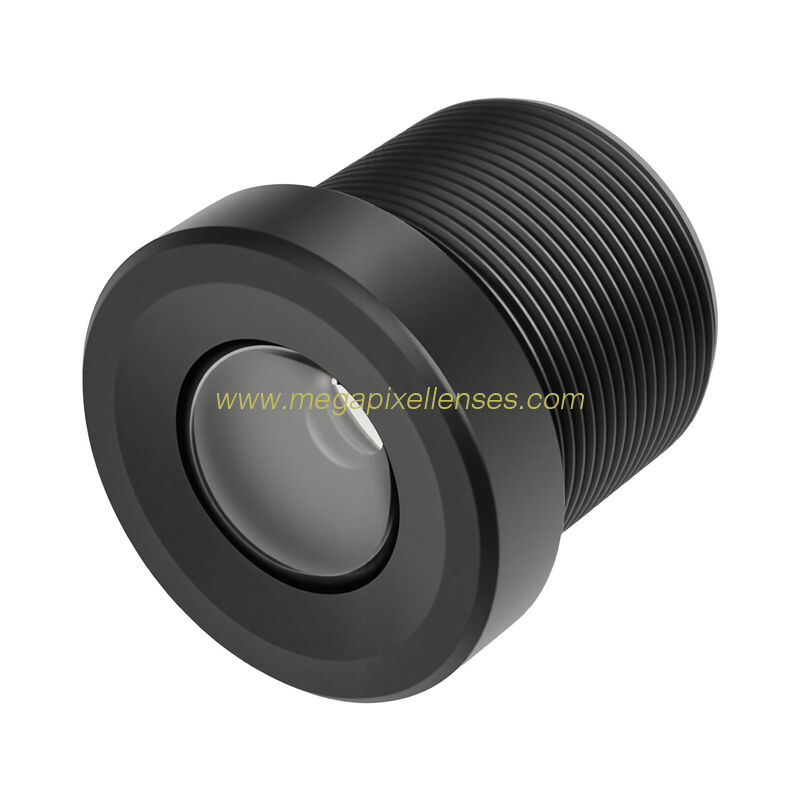

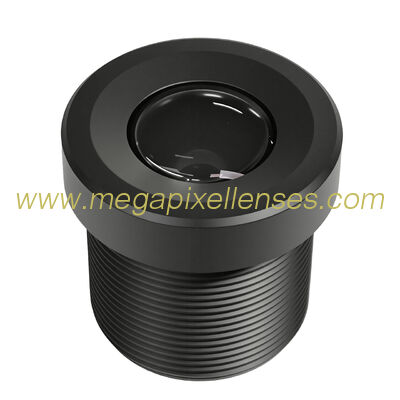

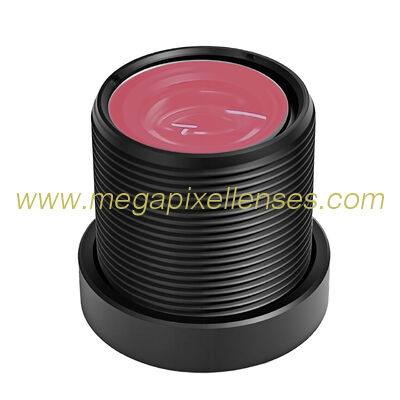

1/2.6" 5.89mm F2.4 5Megapixel 73Degree M12x0.5 mount board lens 5MP S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1270589MP 1270589MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 5MP |
|---|---|---|---|
| F.O.V.(D): | 73° | Structure: | 6G/6G+IR |
1/2.6" 5.89mm F2.4 5Megapixel M12x0.5 mount board lens, 5MP S mount cctv lens
MODEL: 1260589MPF
IMAGE FORMAT 1/2.6"
MAX IMAGE CIRCLE Φ7.4mm
FOCAL LENGTH(mm) 5.89
FOV(DxHxV): 73º*60º*38.5º
RESOLUTION 5MP
APERTURE 2.4
OPTICAL DISTORTION <22%
TV DISTORTION -
MOUNT(mm) M12x0.5
IRIS Fixed
O.D. 0.4m
F.B.F.L. 5.66mm
T.T.L. 19.25mm
R.I. >60%
C.R.A. 11º
LENS DIMENSION Φ14*13.49mm
Structure 6G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
