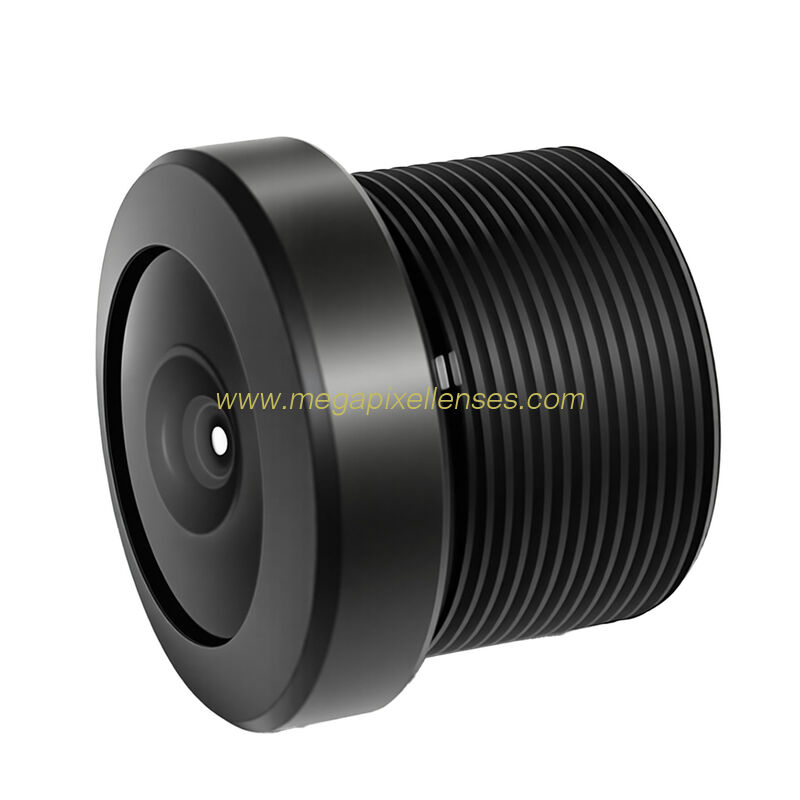

Waterproof 1/4" 1.4mm F2.4 5Megapixel 190Degree Wide Angle M12x0.5 mount board lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14014MP-W 14014MPF-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 5MP |
|---|---|---|---|
| F.O.V.(H): | 190° | Structure: | 7G/7G+IR |
Waterproof 1/4" 1.4mm F2.4 5Megapixel 190D Wide-angle M12x0.5 mount board lens, 5MP S mount cctv lens
MODEL: 14014MPF-W
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Φ3.4mm
FOCAL LENGTH(mm) 1.4
FOV: 190º(H)
RESOLUTION 5MP
APERTURE 2.4
OPTICAL DISTORTION -30%(f-thera)
TV DISTORTION -46%(4:3)
MOUNT(mm) M12x0.5
IRIS Fixed
O.D. 1m
F.B.F.L. 2.00mm
B.F.L.: 2.10mm
T.T.L. 14.20mm
R.I. >80%
C.R.A. 10º
LENS DIMENSION Φ14*12.2mm
Structure 7G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
