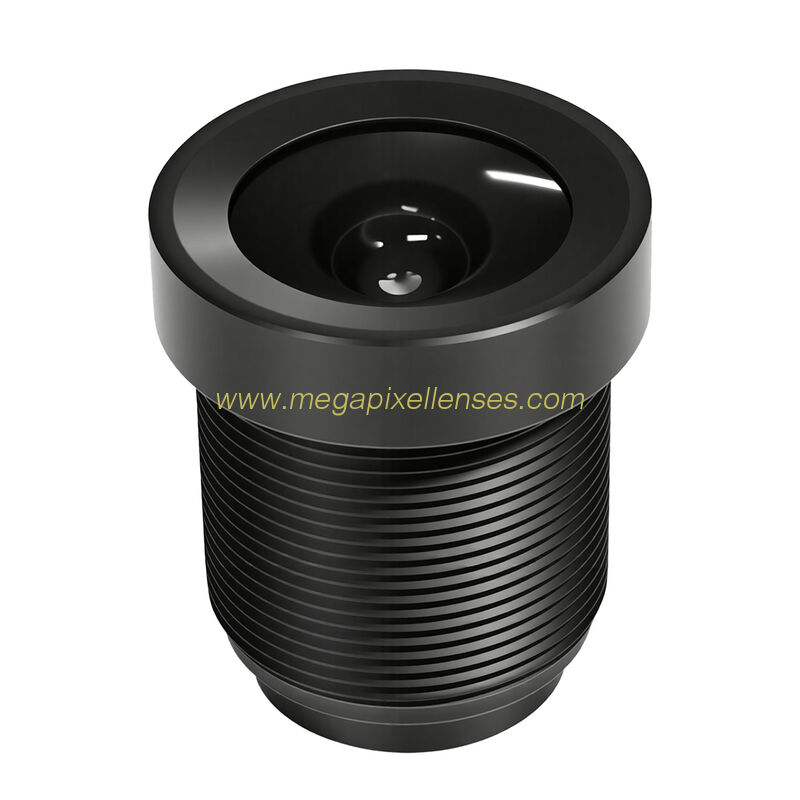

1/2.9" 2.8mm F2.0 Megapixel 145Degree Wide Angle M12x0.5 mount board lens 1080P S mount lens for IMX322 P03100K
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 129028MP-B 129028MPF-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | MP |
|---|---|---|---|
| F.O.V.(D): | 145° | Structure: | 4G/4G+IR |
1/2.9" 2.8mm F2.0 Megapixel 145D Wide-angle M12x0.5 mount board lens, MP S mount cctv lens for 1/2.9" 1/3" & 1/4"
MODEL: 129028MPF-B
IMAGE FORMAT 1/2.9"
MAX IMAGE CIRCLE Φ6.2mm
FOCAL LENGTH(mm) 2.8
FOV: 1/2.9"[16:9]:59.7(V)X116.9º((H)X145.6º(D)-1080P, 1/3[4:3]:72.1(V)X100.8º(H)X138.3º(D), 1/4"[4:3]:52.9(V)X72.1º(H)X93.2º(D)
RESOLUTION MP
APERTURE 2.0
OPTICAL DISTORTION -
TV DISTORTION -
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D. 0.1m
F.B.F.L. 4.60mm
B.F.L.: 5.60mm
T.T.L. 20.73mm
R.I. >70%
LENS DIMENSION Φ14*16.13mm
IR Filter 940nm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
