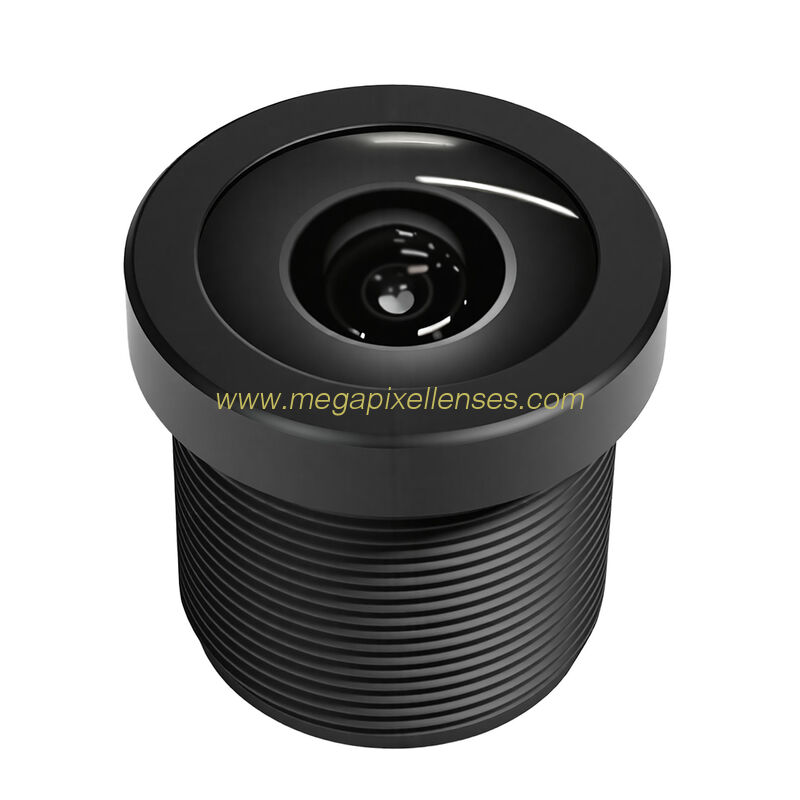

1/3" 2.3mm F2.5 176Degree Wide Angle M12x0.5 mount board lens S mount lens for PC1089K
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 13023F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 0.35MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 176.7°*124°*93.5° | Lens Constructure: | 6G/6G+IR |
1/3" 2.3mm F2.5 0.3Megapixel 176D Wide-angle M12x0.5 mount board lens, S mount cctv lens for PC1089K
MODEL: 13023F
IMAGE FORMAT 1/3"
MAX IMAGE CIRCLE
FOCAL LENGTH(mm) 2.3
FOV: 176.7° (D)*124°(H)*93.5° (V)
RESOLUTION 0.3MP
APERTURE 2.5
OPTICAL DISTORTION
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 3.81mm±0.3mm
B.F.L. 4.6mm±3%
T.T.L. 17.95mm±0.4mm
R.I. 70.4%
C.R.A.
LENS DIMENSION Φ14*14.14mm
Structure 6G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
