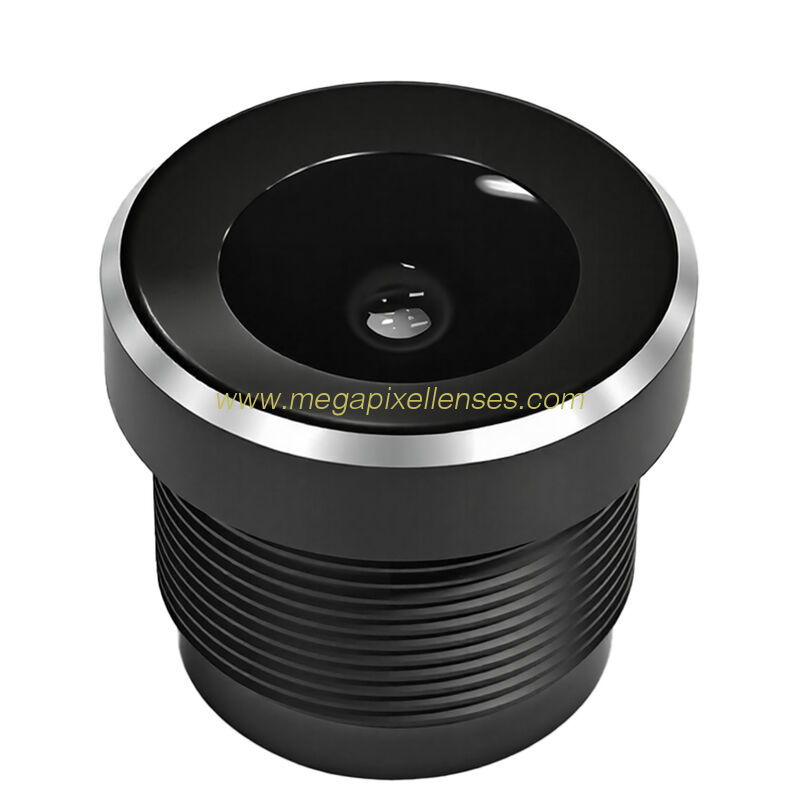

1/2.7" 3mm F2.0 4Megapixel 150Degree Wide Angle M12x0.5 mount board lens S mount lens for OV2710/IMX322/IMX122/IMX291
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127031MP 127031MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 150°*121.1°*62.4° | Lens Constructure: | 5G/5G+IR |
1/2.7" 3.068mm F2.0 4Megapixel 150D Wide-angle M12x0.5 mount board lens, 4MP S mount cctv lens for OV2710/IMX322/IMX122/IMX291
MODEL: 127031MPF
IMAGE FORMAT 1/2.7"
MAX IMAGE CIRCLE Φ6.6mm
FOCAL LENGTH(mm) 3.068
FOV: 150°(D)*121.2° (H)*62.4° (V)
RESOLUTION 4MP
APERTURE 2.0
OPTICAL DISTORTION -71.1%
TV DISTORTION -30.80%
Object Distance >=0.6m
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 5.17mm
B.F.L.: 5.58mm
T.T.L. 17.00mm
LENS DIMENSION Φ14*11.99mm
Structure 5G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
