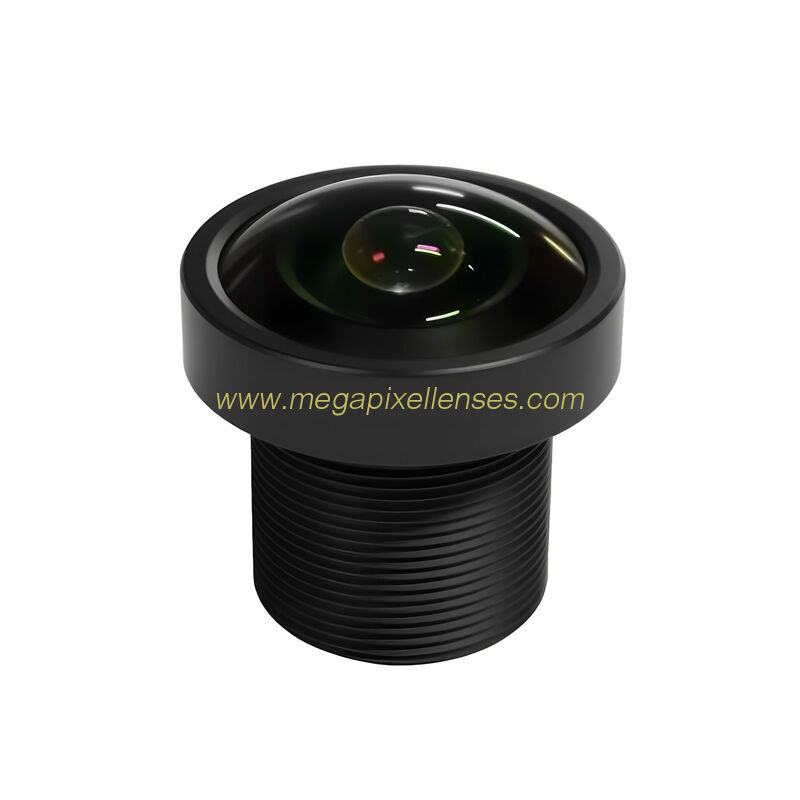

1/3" 1.57mm F2.2 3Megapixel 192Degree Wide Angle M12x0.5 mount board lens S mount lens for IMX678
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 130157MP 130157MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
|---|---|---|---|
| F.O.V.(H*V): | 192°*138° | Lens Constructure: | 6G/6G+IR |
1/3" 1.57mm F2.2 Megapixel 192D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 130157MPF
IMAGE FORMAT 1/3"
MAX IMAGE CIRCLE Φ4.8mm
FOCAL LENGTH(mm) 1.57
FOV: 192° (H)*138° (V)
RESOLUTION 3MP
APERTURE 2.2
OPTICAL DISTORTION <-9%(f-thera)
TV DISTORTION -24%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 3.55mm
T.T.L. 20.98mm
C.R.I. <15°
R.I. >70%
LENS DIMENSION Φ17*17.42mm
Structure 6G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
