CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions

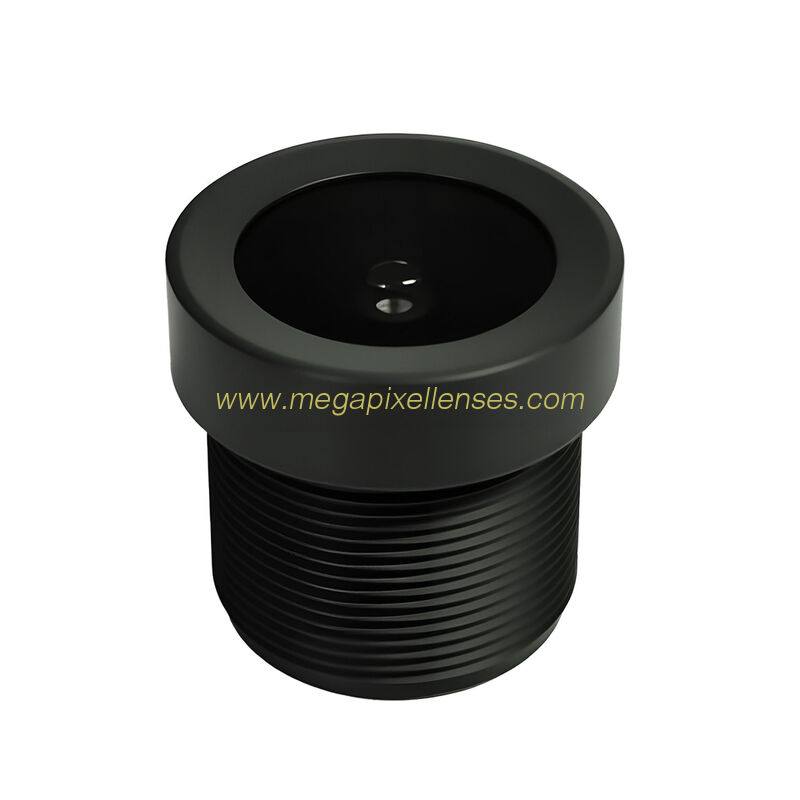

1/2.7" 3.22mm F2.5 2Megapixel 145Degree Wide Angle M12x0.5 mount board lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1270322MP 1270322MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 2.5MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 145°*106°*76° | Lens Constructure: | 4G/4G+IR |
1/2.7" 3.22mm F2.5 2.5Megapixel 145D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 1270322MPF
IMAGE FORMAT 1/2.7"
MAX IMAGE CIRCLE Φ6.9mm
FOCAL LENGTH(mm) 3.22
FOV: 145°(D)*176° (H)*76° (V)
RESOLUTION 2.5MP
APERTURE 2.5
OPTICAL DISTORTION -67.5%
TV DISTORTION -25%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 4.10mm
B.F.L.: 5.08mm
T.T.L. 17.3mm
O.D.(m) 1m
C.R.I. 20°
R.I. >50%
LENS DIMENSION Φ14*13.42mm
Structure 4G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
