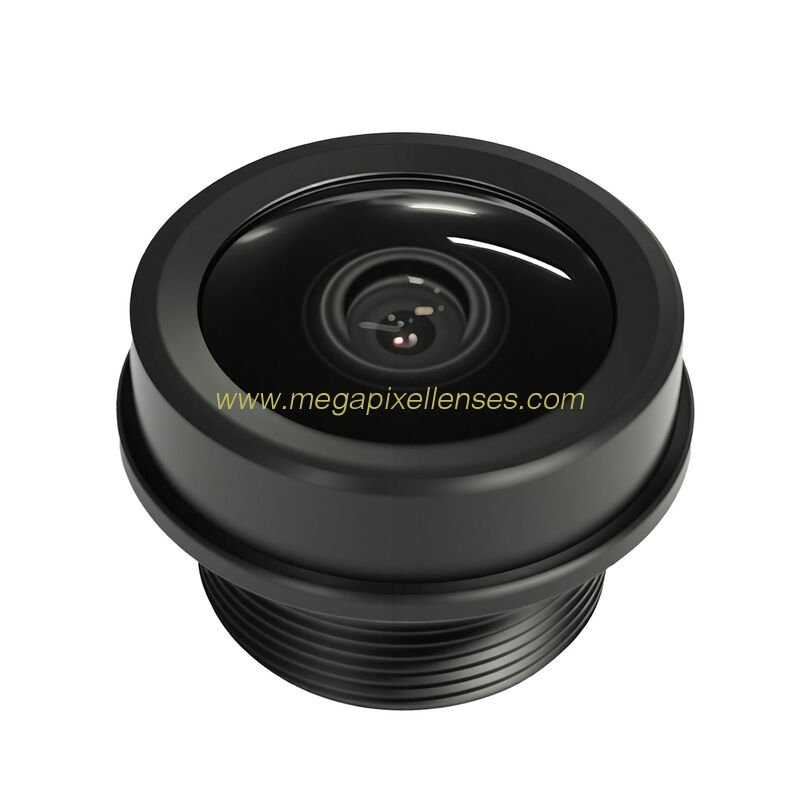

1/4" 1.05mm F2.0 Megapixel 204Degree Wide Angle M12x0.5 mount board lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 140105MP-C 140105MPF-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 204.6°*197.8°*147.6° | Lens Constructure: | 1G4P/1G4P+IR |
1/4" 1.05mm F2.0 Megapixel 204.6D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 140105MPF-C
IMAGE FORMAT 1/4"
FOCAL LENGTH(mm) 1.0465
FOV: 204.6°(D)*176.8° (H)*147.6° (V)
RESOLUTION MP
APERTURE 2.0
TV DISTORTION -19.5%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 1.54mm
B.F.L.: 2.40mm
T.T.L. 12.74mm
O.D.(m) 0.2m
C.R.I. 14.7°
R.I. >56.5%
LENS DIMENSION Φ16*11.2mm
Structure 1G4P+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
