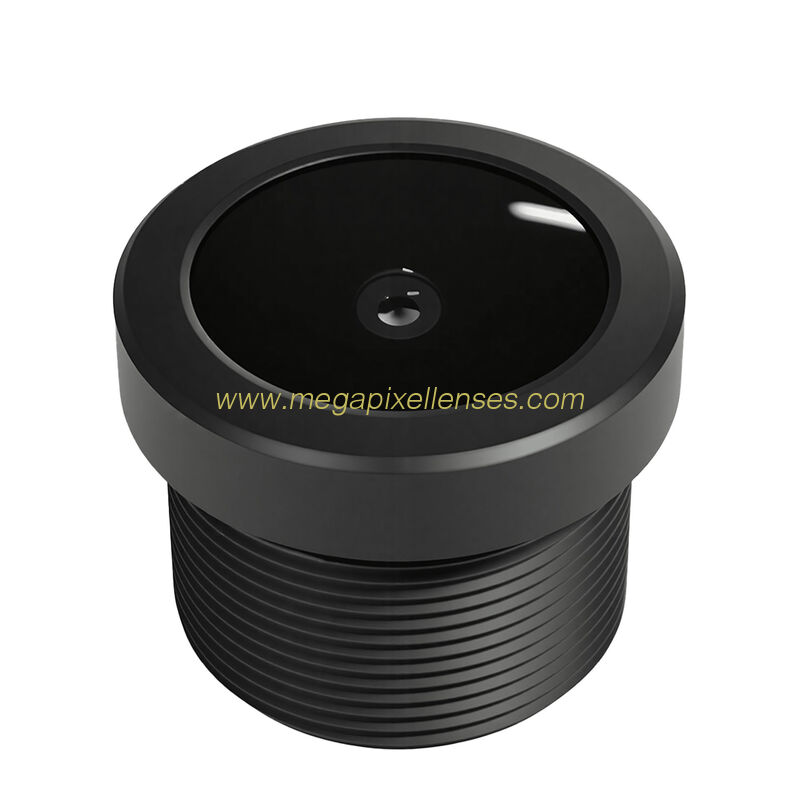

1/2.7" 2.9mm F2.7 2Megapixel 176Degree Wide Angle M12x0.5 mount board lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127029MP 127029MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 2MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 176°*120°*84° | Lens Constructure: | 4G/4G+IR |
1/2.7" 2.9mm F2.7 2Megapixel 176D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 127029MPF
IMAGE FORMAT 1/2.7"
FOCAL LENGTH(mm) 2.9
FOV: 176°(D)*120° (H)*84° (V)
RESOLUTION 2MP
APERTURE 2.7
OPTICAL DISTORTION -23% (f-thera)
TV DISTORTION -34%(4:3)
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 4.3mm±0.1mm
B.F.L.: 4.7mm
T.T.L. 15.46mm±0.1mm
O.D.(m) 0.2m
C.R.I. 17.5°
R.I. >40%
LENS DIMENSION Φ14*11.15mm
Structure 4G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
