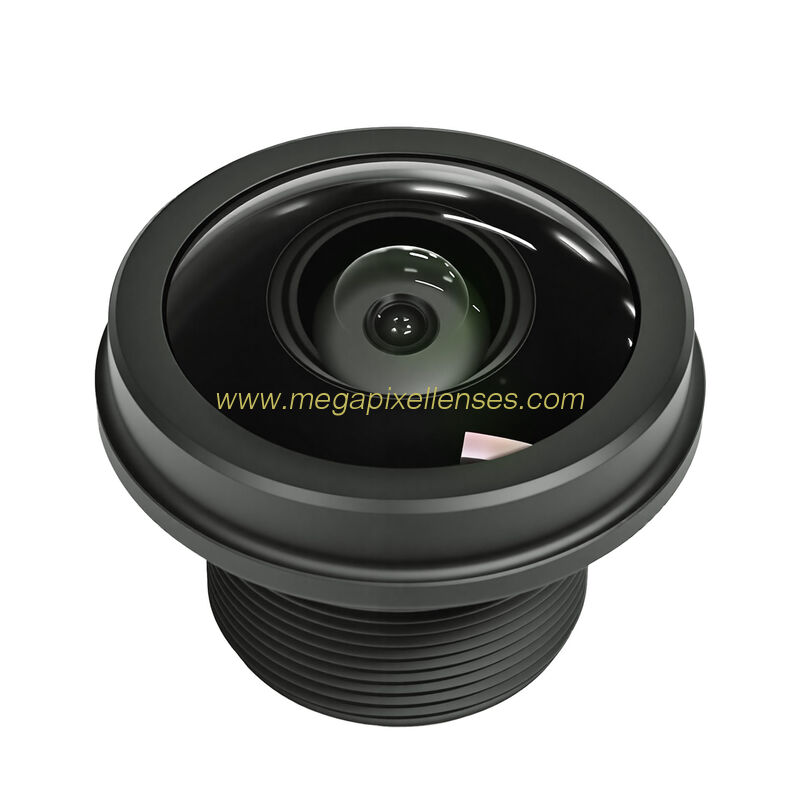

1/3" 1.41mm F2.4 Megapixel 190Degree Wide Angle M12x0.5 mount board lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 130141MP 130141MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | MP |
|---|---|---|---|
| F.O.V.(H*V): | 190°*143° | Lens Constructure: | 3G3P/3G3P+IR |
1/3" 1.41mm F2.4 Megapixel 190D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 130141MPF
IMAGE FORMAT 1/3"
MAX IMAGE CIRCLE Φ5.04mm
FOCAL LENGTH(mm) 1.41
FOV: 190° (H)*143° (V)
RESOLUTION MP
APERTURE 2.4
OPTICAL DISTORTION
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 1.38mm±0.3mm
T.T.L. 16.2mm±5%
M.O.D.(m) 0.4
C.R.I. 14.6°
LENS DIMENSION Φ18*14.82mm
Structure 3G3P+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
