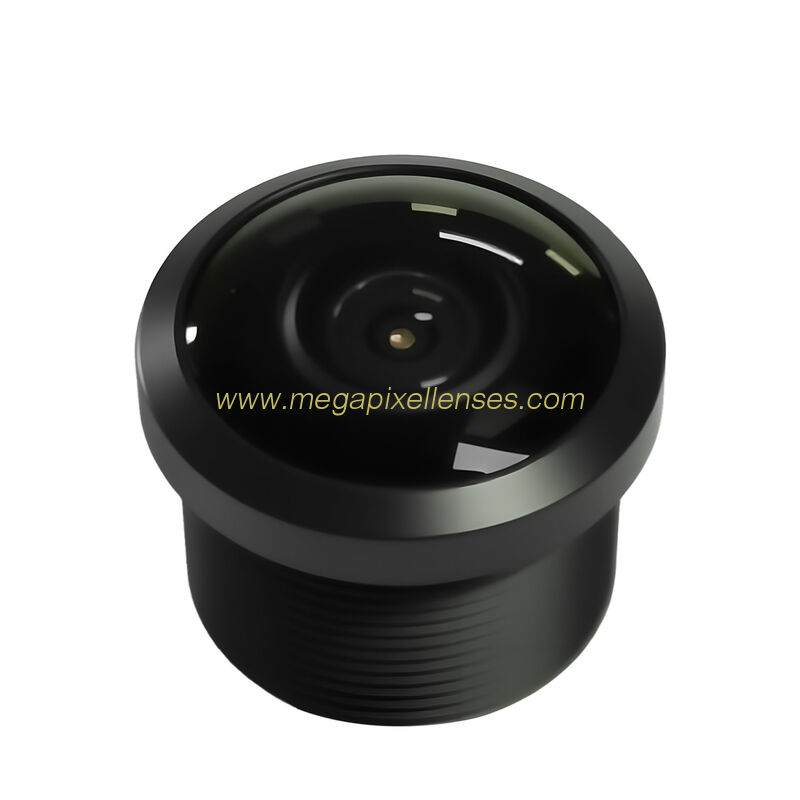

1/4" 1.2mm F2.7 2Megapixel 230Degree Wide Angle M12x0.5 mount board lens for 1920x1080 2.9um, S mount 5MP lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14012MP 14012MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 2MP |
|---|---|---|---|
| F.O.V.(H*V): | 230°*150° | Lens Constructure: | 6G/6G+IR |
1/4" 1.2mm F2.7 2Megapixel 230D Wide-angle M12x0.5 mount board lens for sensor 1920x1080 2.9um, S mount cctv lens
MODEL: 14012MPF
IMAGE FORMAT 1/4"
FOCAL LENGTH(mm) 1.2
FOV: 230° (H)*150° (V)
RESOLUTION 2MP
APERTURE 2.7
OPTICAL DISTORTION -19.7%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 2.89mm±0.3mm
T.T.L. 14.7±5%
M.O.D.(m) 0.4
R.I. >90%
C.R.I. 11°
LENS DIMENSION Φ14*11.78mm
Structure 6G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
