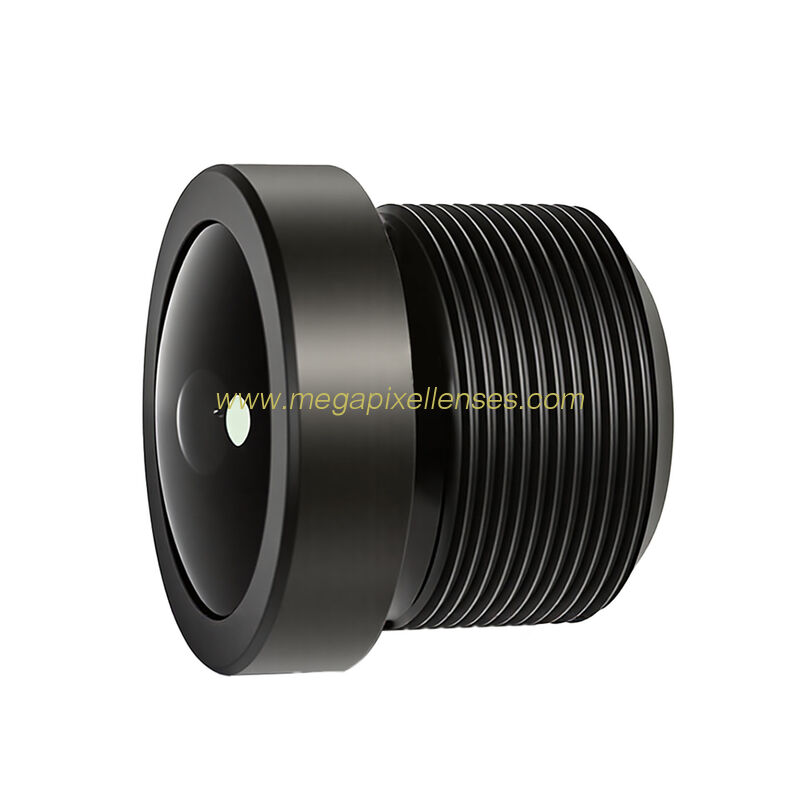

1/2.7" 2.44mm F2.1 5Megapixel 170Degree Wide Angle M12x0.5 mount board lens, S mount 5MP lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1270244MP 1270244MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 5MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 170°*150°*90° | Lens Constructure: | 6G/6G+IR |
1/2.7" 2.44mm F2.1 5Megapixel 170D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 1270244MPF
IMAGE FORMAT 1/2.7"
FOCAL LENGTH(mm) 2,44
FOV: 170° (D)*150° (H)*90° (V)
RESOLUTION 5MP
APERTURE 2.1
OPTICAL DISTORTION -87.5%
TV DISTORTION -21.43%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 4.33mm±0.3mm
B.F.L. 4.905mm
T.T.L. 17.25±5%
M.O.D.(m) 0.4
R.I. >62%
C.R.I. 23°
LENS DIMENSION Φ14*12.93mm
Structure 6G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
