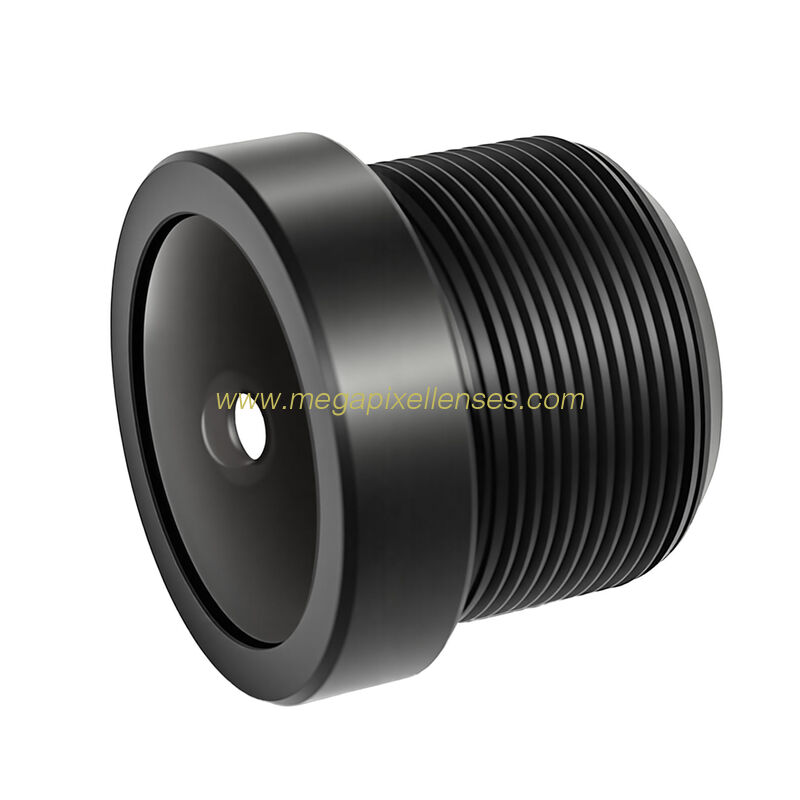

1/2.7" 2.88mm F1.8 3Megapixel 160Degree Wide Angle M12x0.5 mount board lens, S mount 3MP lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1270288MP 1270288MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 160°*117°*85° | Lens Constructure: | 6G/6G+IR |
1/2.7" 2.88mm F1.8 3Megapixel 160D Wide-angle M12x0.5 mount board lens, S mount cctv lens
MODEL: 1270288MPF
IMAGE FORMAT 1/2.7"
MAX IMAGE CIRCLE Φ6.8mm
FOCAL LENGTH(mm) 2.88
FOV: 160° (D)*117° (H)*85° (V)
RESOLUTION 3MP
APERTURE 1.8
OPTICAL DISTORTION -81.5%
TV DISTORTION -29.3%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 5.02mm±0.3mm
T.T.L. 17.3±0.3mm
M.O.D.(m) 0.4
R.I. >50%
C.R.A. <20°
LENS DIMENSION Φ14*12.28mm
Structure 5G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
