1/3.2" 3.3mm F2.0 14MP Megapixel M9x0.25 mount low distortion mini camera lens for drone
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 132033MP-M9 132033MPF-M9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M9 Mount Mini Camera Lens | Resolution: | 14MP |
|---|---|---|---|
| FOV: | 82° | Lens Constructure: | 1G5P/1G5P+IR |

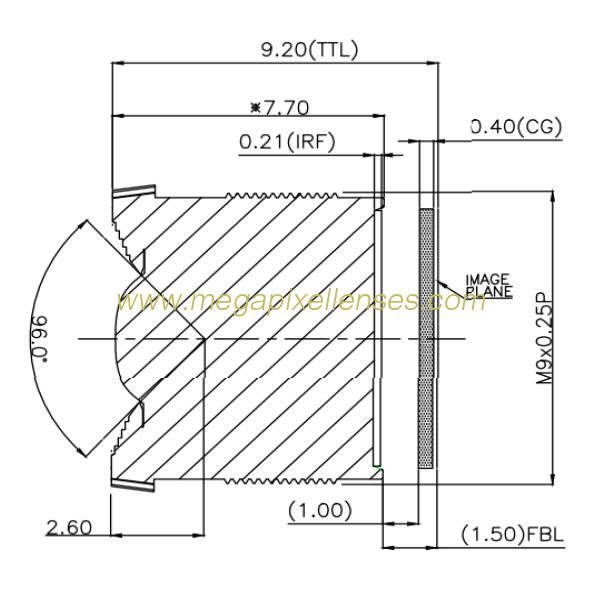

1/3.2" 3.3mm F2.0 14MP low distortion M9*0.25 mount mini lens for drone/mini DV camera/digital cameras/electronic video devices, M9 mount lens for mini video camera
MODEL: 132033MPF-M9
SENSOR SIZE: 1/3.2"
MAX IMAGE CIRCLE: Φ6.9mm
FOCAL LENGTH(mm): 3.3 ±5%
F.O.V.: 82°
RESOLUTION: 14MP
OPTICAL DISTORTION: <1%
C.R.A.: <19°
R.I.: 51%
APERTURE: F2.0 (infinity)
MOUNT(mm): M9xP0.25
IRIS: Fixed
M.O.D.: 20cm
B.F.L.(mm) 1.5
T.T.L.(mm): 9.2±0.2
LENS COMPOMEMT: 1G5P+IR
DIMENSION: Φ9.0x7.7mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
