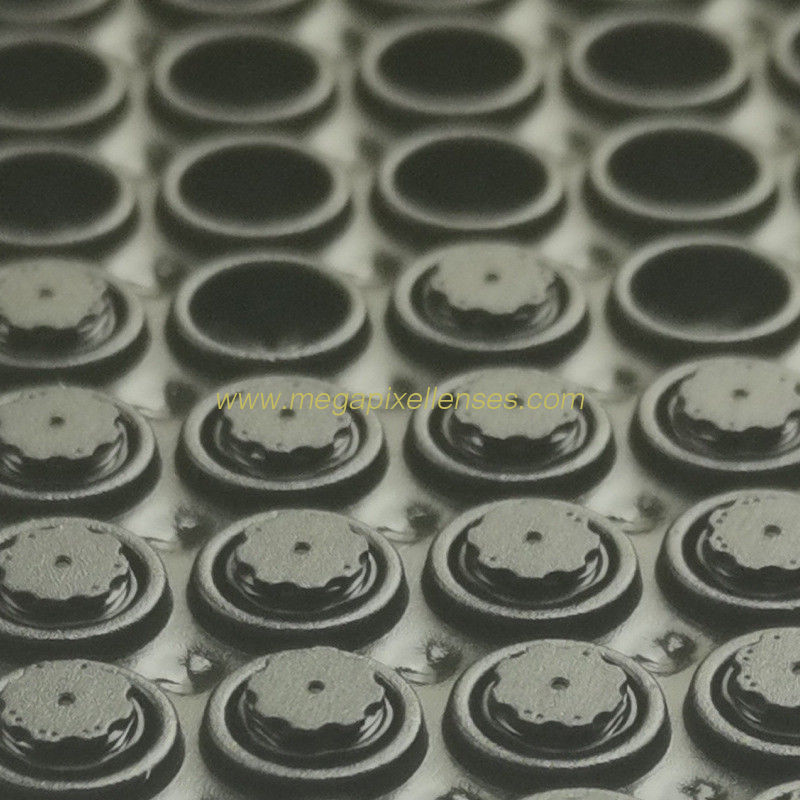

1/10" 1.5mm F2.8 M4xP0.3 megapixel medical endoscope lens for CMOS sensors, WD10-60mm TTL2.2mm

1/10" 1.5mm F2.8 M4xP0.3 megapixel medical endoscope lens for CMOS sensors, WD10-60mm TTL2.2mm

1/10" 1.5mm F2.8 M4xP0.3 megapixel medical endoscope lens for CMOS sensors, WD10-60mm TTL2.2mm

Product Details:

Place of Origin: China
Brand Name: CCOM LENS
Model Number: M4-11015MPF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Standard
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, Moneygram, Paypal
Supply Ability: Samples available
Contact Now
Detailed Product Description
Video Lens: M4x0.3 Mount Endoscope Lens Resolution: Megapixel
F.O.V(D): 64.7° Constructure: 1P+IR

1/10" 1.5mm F2.8 M4xP0.3 64.7degree HD MP micro medical lens endoscope lens/otoscope lens, micro lens for CMOS sensors, medical video equipment lens


This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.



MODEL M4-11015MPF
IMAGE FORMAT 1/10"
SENSOR CMOS
MAX IMAGE CIRCLE
Φ2.3mm
FOCAL LENGTH 1.5mm (±5%)
F.O.V(DxHxV) 64.7°x53.6
°x41.5°

RESOLUTION MP
APERTURE F2.8 (±5%)
TV DISTORTION <15%

OPTICAL DISTORTION <2%
MOUNT M4XP0.3

R.I. >52%

C.R.A. <25.4°
B.F.L.(O) 0.89
mm

B.F.L.(M) 0.48mm

F.B.L. 0.58mm (infinity), 0.585mm(0.41m)

T.T.L. 2.2mm ±0.1mm

WD 10-60mm
LENS CONSTRUCTURE 2P+IR filter (650nm)



Tips: we also have medical lenses for 1/9", 1/13" and 1/18" sensors. For more info, please feel free to contact us by email sales01@megapixellenses.com.
