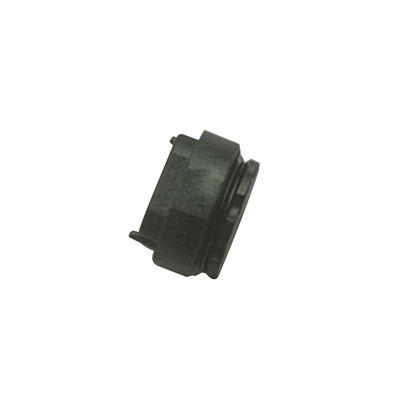

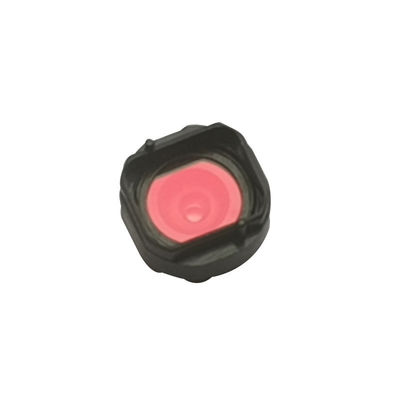

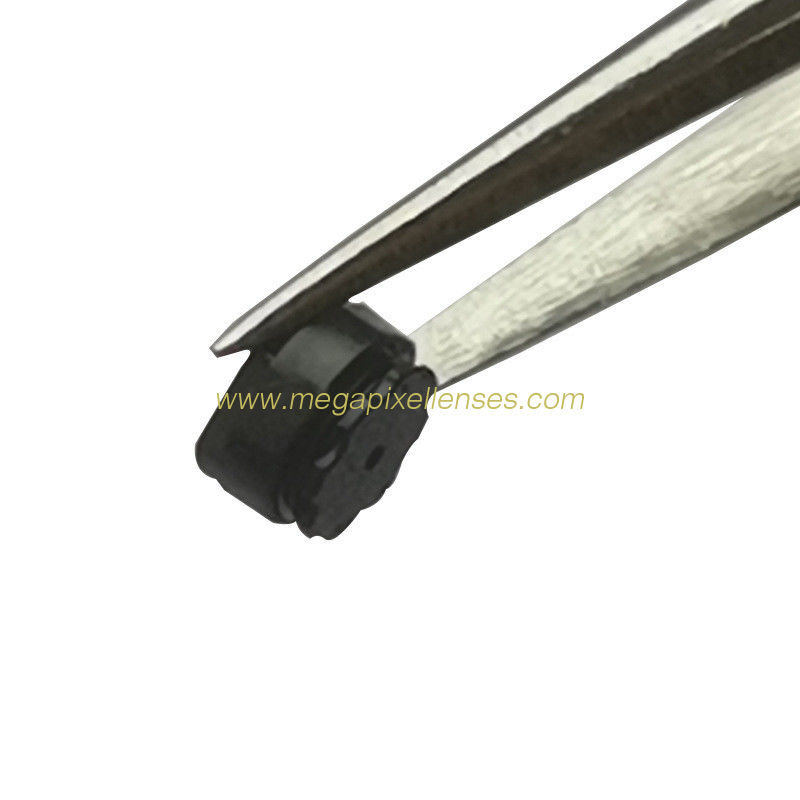

1/10" 1.5mm F2.8 M4xP0.35 medical endoscope lens for CMOS sensors, WD10-60mm TTL2.2mm
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | M4-11015-13C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M4x0.35 Mount Endoscope Lens | Resolution: | 0.3 Megapixel |
|---|---|---|---|
| F.O.V(D): | 64.7° | Lens Constructure: | 2P+IR |
1/10" 1.5mm F2.8 M4xP0.35 64.7degree 0.3MP micro medical lens endoscope lens/otoscope lens, micro lens for CMOS sensors, medical video equipment lens
This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.
MODEL M4-11015-13C
IMAGE FORMAT 1/10"
SENSOR CMOS
MAX IMAGE CIRCLE Φ2.3mm
FOCAL LENGTH 1.5mm (±5%)
F.O.V(DxHxV) 64.7°x53.6°x41.5°
RESOLUTION 0.3MP
APERTURE F2.8 (±5%)
TV DISTORTION <15%
OPTICAL DISTORTION <2%
MOUNT M4XP0.35
R.I. >52%
C.R.A. <25.4°
B.F.L.(O) 0.89mm
B.F.L.(M) 0.48mm
F.B.L. 0.58mm (infinity), 0.585mm(0.41m)
T.T.L. 2.2mm ±0.1mm
WD 10-60mm
LENS CONSTRUCTURE 2P+IR filter (650nm)
Tips: we also have medical lenses for 1/9", 1/13" and 1/18" sensors. For more info, please feel free to contact us by email sales01@megapixellenses.com.
