CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions
Place of Origin: | China |
Brand Name: | CCOM LENS |
Model Number: | M5-15018MPF |
Minimum Order Quantity: | 100pcs |
---|---|
Packaging Details: | Standard |
Delivery Time: | 3-10 work days |
Payment Terms: | T/T, Western Union, Moneygram, Paypal |
Supply Ability: | Samples available |
Video Lens: | M5x0.35 Mount Endoscope Lens | Resolution: | 2MP |
---|---|---|---|
F.O.V(D): | 80° | Lens Constructure: | 3P+IR |

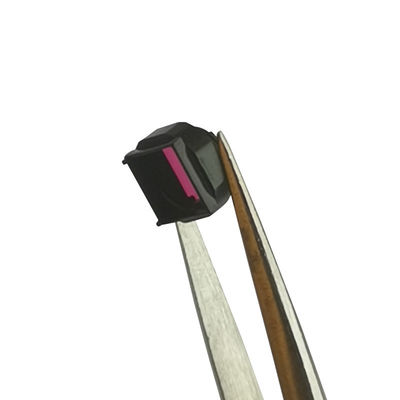

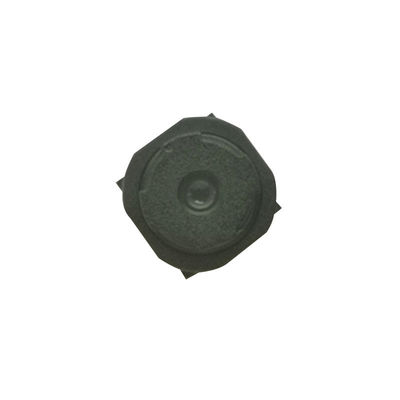

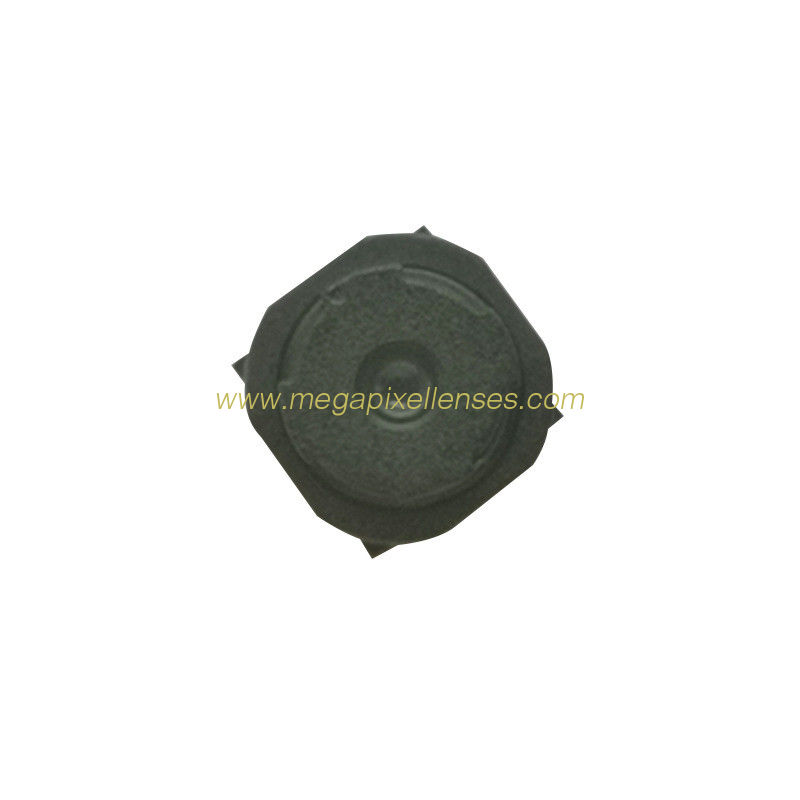

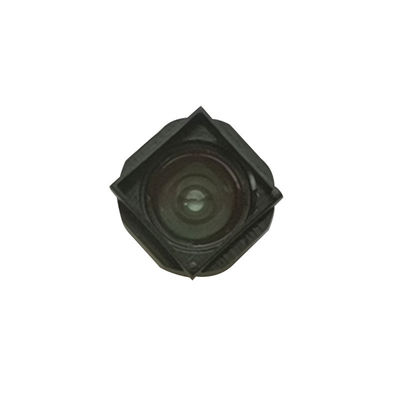

1/5" 1.8mm F2.6 M5xP0.35 80degree 2MP micro medical lens endoscope lens/otoscope lens, 1080P medical video equipment lens megapixel lens
This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.
MODEL M5-15018MPF
IMAGE FORMAT 1/5"
MAX IMAGE CIRCLE Φ3.8mm
FOCAL LENGTH 1.8mm (±5%)
F.O.V(DxHxV) 80°x65°x50°
RESOLUTION 2MP
APERTURE F2.6 (±5%)
TV DISTORTION <1.5%
MOUNT M5XP0.35
R.I. >33%
C.R.A. <32°
B.F.L. 1.25mm
F.B.L. 0.86mm
T.T.L. 3.0mm±0.1mm
WD 20-90mm
LENS CONSTRUCTURE 3P+IR filter
Tips: we also have medical lenses for 1/6", 1/7", 1/9", 1/10", 1/13" and 1/18" sensors. For more info, please feel free to contact us by email sales01@megapixellenses.com.
