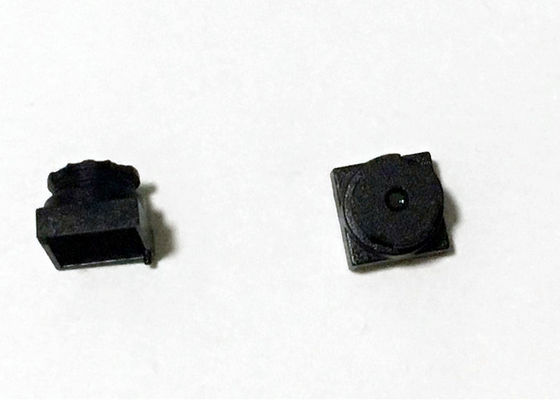

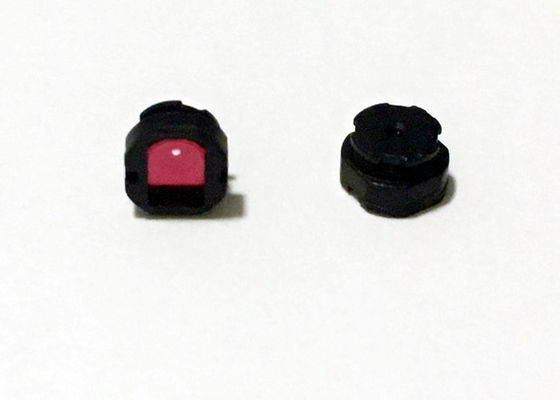

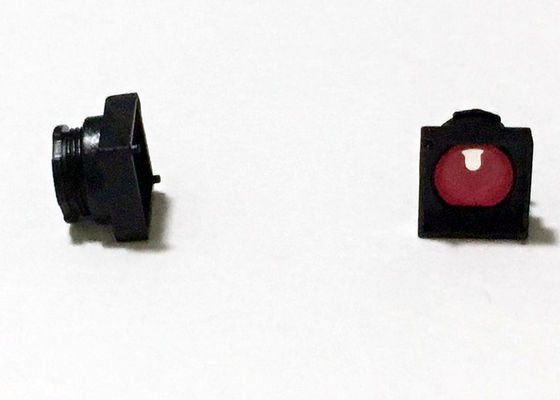

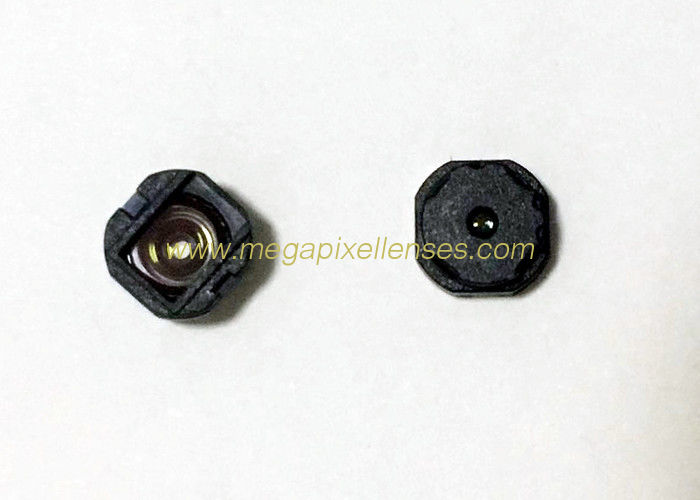

1/6" 1.8mm F2.8 Megapixel M4.2x0.25 mount non-distortion lens, plastic M4.2 video lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 16018MPF-M4.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M4.2 Mount Non-distortion Optical Lens | Resolution: | Megapixel |
|---|---|---|---|
| FOV: | 60° | Lens Constructure: | 4P+IR |
1/6" 1.8mm F2.8 Megapixel M4.2*0.25 mount 60degree non-distortion lens, plastic industrial endoscope lens, square & round lens holder options
Model 16018MPF-M4.2
IMAGE FORMAT 1/6”
IMAGE FORMAT 1/6”
FOCAL LENGTH/EFL 1.8mm
Effective image diameter Φ3.2mm
F.O.V. 60° RESOLUTION MP
OPTICAL DISTORTION <1.0%
APERTURE F2.8 (infinity)
MOUNT M4.2x0.25P
T.T.L. 2.65mm
DIMENSION Φ4.54×2.40mm
CONSTRUCTION 4P+IR
IR-CUT FILTER T50%=650+/-10nm
R.I. 55%
Effective image diameter Φ3.2mm
F.O.V. 60° RESOLUTION MP
OPTICAL DISTORTION <1.0%
APERTURE F2.8 (infinity)
MOUNT M4.2x0.25P
T.T.L. 2.65mm
DIMENSION Φ4.54×2.40mm
CONSTRUCTION 4P+IR
IR-CUT FILTER T50%=650+/-10nm
R.I. 55%
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- Square & round lens holder options
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
