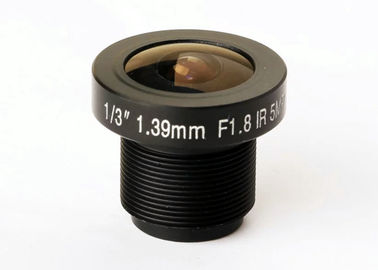

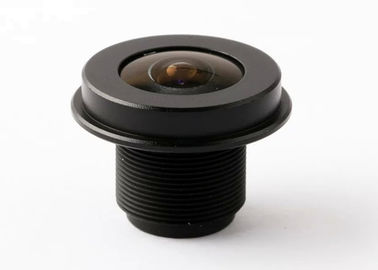

1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras

1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras

    • 1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
    • 1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
    • 1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
  • 1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS

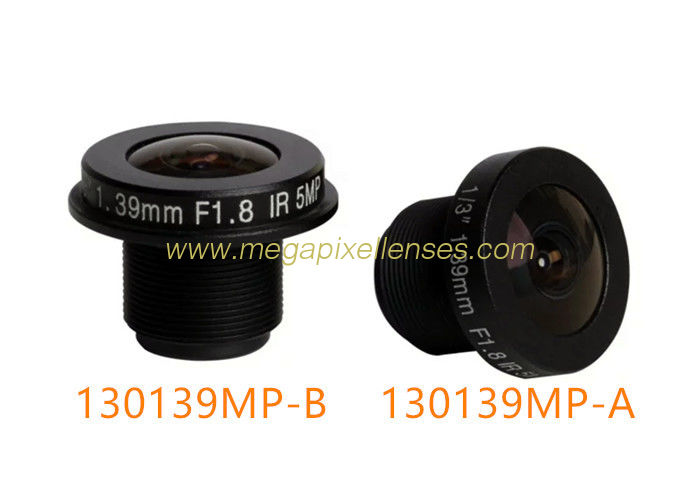

    Model Number: 130139MP-A / 130139MP-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Board Lens: M12 Mount Fisheye Lens Resolution: 5MP
    FOV: 185degree Materials: Metal + Glass

    1/3" 1.39mm F1.8/F2.0 5Megapixel M12*0.5 mount wide angle 185degree fisheye lens for panoramic cameras



    MODEL 130139MP-A
    IMAGE FORMAT 1/3" CCD/CMOS
    FOCAL LENGTH(mm) 1.39 ±5%
    F.O.V. 185°(D)x185°(H)x185°(V)
    RESOLUTION 5MP
    APERTURE 2.0 ±5%
    MOUNT(mm) M12x0.5
    IRIS Fixed
    M.O.D.(m) 0.1
    B.F.L.(mm) 4.05 ±5% (in air)
    F.B.L.(mm) 3.50 ±5%

    CONSTRUCTION 6G
    DIMENSION(mm) Φ17x15.9



    MODEL 130139MP-B
    IMAGE FORMAT 1/3" CCD/CMOS
    FOCAL LENGTH(mm) 1.39 ±5%
    F.O.V. 185°(D)x185°(H)x185°(V)
    RESOLUTION 5MP
    APERTURE 2.0 ±5%
    MOUNT(mm) M12x0.5
    IRIS Fixed
    M.O.D.(m) 0.1
    B.F.L.(mm) 4.05 ±5% (in air)
    F.B.L.(mm) 3.50 ±5%

    CONSTRUCTION 6G
    DIMENSION(mm) Φ20x15.9



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com



    EFFECT ON 1/3" SENSOR:

    1/3" 1.39mm 5Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
