1/1.7" 1.29mm 12Megapixel M12 mount 190degree Fisheye Lens for IMX226 panoramic camera lens

1/1.7" 1.29mm 12Megapixel M12 mount 190degree Fisheye Lens for IMX226 panoramic camera lens

1/1.7" 1.29mm 12Megapixel M12 mount 190degree Fisheye Lens for IMX226 panoramic camera lens

Product Details:

Place of Origin: China
Brand Name: CCOM LENS
Model Number: 1170129MP 1170129MPF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Standard
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, Moneygram, Paypal
Supply Ability: Samples available
Contact Now
Detailed Product Description
Board Lens: M12 Mount Fisheye Lens Resolution: 12MP
FOV: 190degree Materials: Metal + Glass
High Light:

IR Fisheye lens

,

lens supplier

,

M12 CCTV Board Lens

High Definition Fisheye Lens

● High resolution

● Various application meet your requirements

● Compact design with cost-effective performance

● Custom design

● Super wide-angle with FOV up to 190° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option



1/1.7" 1/1.8" 1.29mm F2.4 12Megapixel S mount M12*0.5 Mount 190degree IR Fisheye Lens for IMX226, suitable for 360 VR Camera panoramic lens, able to back-to-back image connection



MODEL 1170129MP
IMAGE FORMAT 1/1.7"

MAX IMAGE CIRCLE Φ5.4mm
FOCAL LENGTH(mm) 1.29

F.O.V. 190°(D)*190°(H)*190°(V)
RESOLUTION 12MP
F-Theta DISTORTION <25.5%
APERTURE F2.4
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(mm) 0.1
B.F.L.(mm) 4
T.T.L.(mm) 30

R.I. >70%

C.R.A. <11.4°

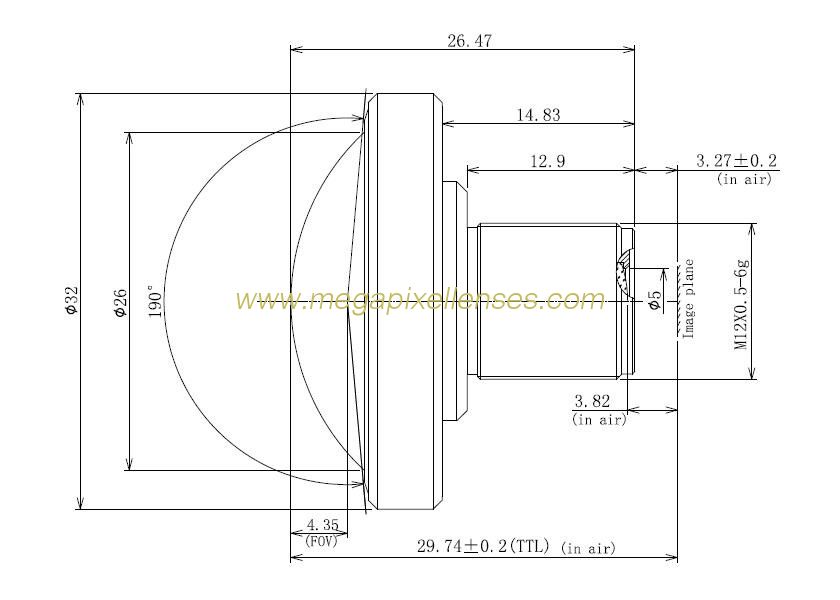

DIMENSION(mm) Φ32x26.47

LENS CONSTRUCTION 10-7 (2ASG)



Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
