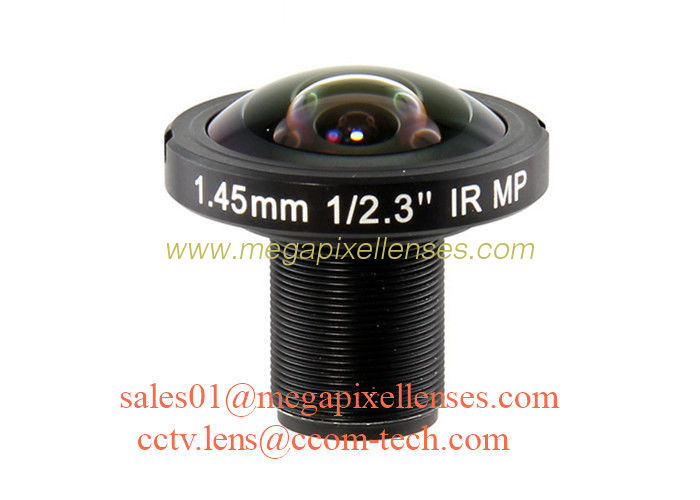

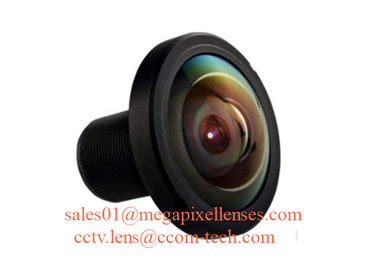

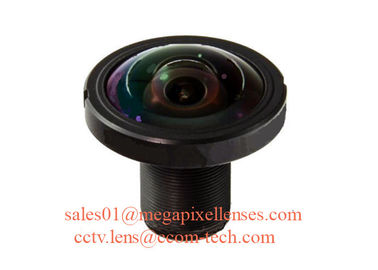

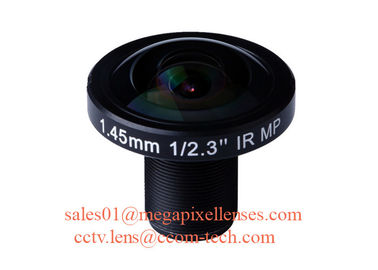

1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens

1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens

    • 1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens
    • 1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens
    • 1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens
    • 1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens
  • 1/1.8" 1/2.3" 1.45mm 10Megapixel S mount M12 190degree Fisheye Lens for IMX178 IMX226, Drone UAV 360VR lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 1230145MP 1230145MPF

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Detailed Product Description
    Board Lens: M12 Mount Fisheye Lens Resolution: 10MP
    FOV: 190degree Materials: Metal + Glass

    High Definition Fisheye Lens

    1. f1.45mm, image circle 4.6mm, ideal for IMX172, IMX178
    2. High resolution: MTF 240lp/mm
    3. 360° solution for IMX178
    4. IR correction for 24 hours surveillance
    5. Excellent control of color aberration , good for WDR sensor



    1/1.8" 1/2.3" 1.45mm F2.2 10Megapixel S mount M12*0.5 Mount 190degree IR Fisheye Lens for IMX178 IMX172 IMX226, suitable for GoPro Ribcage 360 VR Camera, Drone UAV lens, able to match 10MP sensors



    Model 1230145MP (1180145MP)
    IMAGE FORMAT 1/1.8” & 1/2.3"
    IMAGE CIRCLE Φ4.6mm
    FOCAL LENGTH 1.45mm
    F.O.V (D*H*V) 190°*190°*190°
    RESOLUTION 10MP
    APERTURE F2.2
    MOUNT M12×0.5
    F-THETA DISTORTION <-4.74%
    IRIS Fixed
    M.O.D. 0.1m
    B.F.L. 4.62mm
    T.T.L. 28.4mm
    CONSTRUCTION 10-7
    DIMENSION Φ26×24.5mm 30g



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - 1230145MP is also named 1180145MPF because it can match 1/1.8" sensors too.

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
