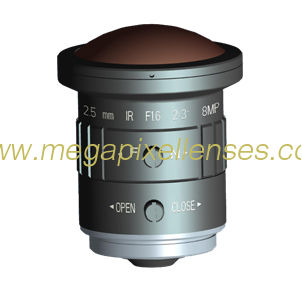

2/3" 2.5mm F1.6 8Megapixel CS mount 190degree Fisheye Lens for 2/3" 1/2" 1/2.7" sensors

2/3" 2.5mm F1.6 8Megapixel CS mount 190degree Fisheye Lens for 2/3" 1/2" 1/2.7" sensors

    • 2/3" 2.5mm F1.6 8Megapixel CS mount 190degree Fisheye Lens for 2/3" 1/2" 1/2.7" sensors
    • 2/3" 2.5mm F1.6 8Megapixel CS mount 190degree Fisheye Lens for 2/3" 1/2" 1/2.7" sensors
    • 2/3" 2.5mm F1.6 8Megapixel CS mount 190degree Fisheye Lens for 2/3" 1/2" 1/2.7" sensors
  • 2/3" 2.5mm F1.6 8Megapixel CS mount 190degree Fisheye Lens for 2/3" 1/2" 1/2.7" sensors

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 23025MP-CS

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Detailed Product Description
    Camera Lens: CS Mount Fisheye Lens Resolution: 4K/8MP
    FOV: 190degree Materials: Metal + Glass

    2/3" 2.5mm F1.6 8Megapixel CS mount 190degrees IR Fisheye Lens for 2/3" 1/2" 1/2.7" sensors, 2.5mm CS-mount panoramic camera lens



    MODEL 23025MP-CS
    IMAGE FORMAT 2/3"
    FOCAL LENGTH(mm) 2.5
    MAX IMAGE CIRCLE Φ6.4mm
    F.O.V. 2/3": 190°(D)*190°(H)*190°(V); 1/2": 190°(D)*190°(H)*117.4°(V); 1/2.7": 190°(D)*134°(H)*94°(V)
    RESOLUTION 8MP
    DISTORTION -97.9%
    APERTURE F1.6
    MOUNT(mm) CS
    IRIS Fixed
    M.O.D.(m) 0.3

    Flange B.F.L.(mm) 12.526
    B.F.L.(mm) 5.99
    M.B.F.(mm) 5.85

    DIMENSION(mm) Φ37x48.94
    IR Collection YES


    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
