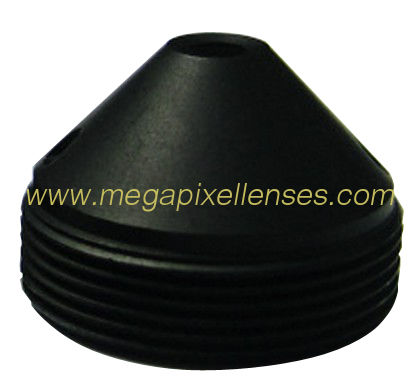

1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras

1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras

    • 1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras
    • 1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras
    • 1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras
    • 1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras
  • 1/3" 2.5mm F2.4 Megapixel M12x0.5 mount 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 13025PMP-M12

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Detailed Product Description
    CCTV Lens: M12 Mount Pinhole Lens Focal Length: 2.5mm Pinhole Lens
    Resolution: Megapixel Lens Constructure: 6G/6G+IR

    1/3" 1/4" 2.5mm F2.4 Megapixle S-Mount M12 140degree Wide Angle Sharp Cone Pinhole Lens for covert cameras, 2.5mm M12 pinhole lens, able to match OV4689/AR0330



    Model 13025PMP-M12
    SENSOR FORMAT 1/3”
    FOCAL LENGTH 2.5mm ±5%
    RESOLUTION 1.3MP
    F.O.V. (D*H*V) 1/3”: 140°*88°*63°; 1/4”: 95°*72°*55°
    APERTURE F2.4 ±5%
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5 - 6g
    B.F.L. 3.3mm ±5% (in air)
    F.B.L. 2.8mm ±5%
    T.T.L. 10.8mm
    LENS CONSTRUCTURE 6G
    DIMENSION Φ12x8.0mm



    Tips:
    - IR-Cut filter available
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
