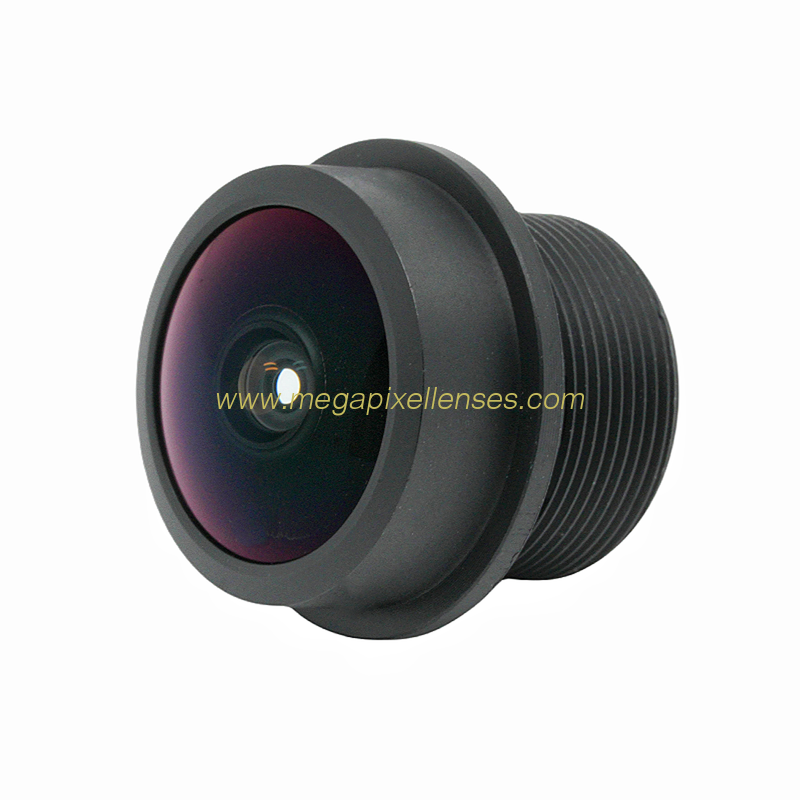

1/2.9" 2.5mm F2.4 2Megapixel M12x0.5P mount 150Degree wide angle lens for GC2053
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 129025MP 129025MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
| Minimum Order Quantity: | 100pcs |
Detailed Product Description
| Highlight: | Automobile data recorder lens,wide angle lens,M8x0.5 Board Lens |
||
|---|---|---|---|
1/2.9" 2.5mm F2.4 2Megapixel M12x0.5P mount 150Degree wide angle lens for GC2053
MODEL 129025MPF
IMAGE FORMAT 1/2.9"
MAX IMAGE CIRCLE Ø6.48mm
FOCAL LENGTH 2.5mm
F.O.V (D*H*V) GC2053: 150°*128°69°
TV DISTORTION <-22.5%
RELATIVE ILLUMIMATION 55%
CRA <19.5°
APERTURE F2.4
RESOLUTION 2MP
MOUNT M12xP0.5
IRIS Fixed
B.F.L. 4.60mm
T.T.L. 16.87mm
DIMENSION Φ16x14.05mm
LENS COMPOMENT 5G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
