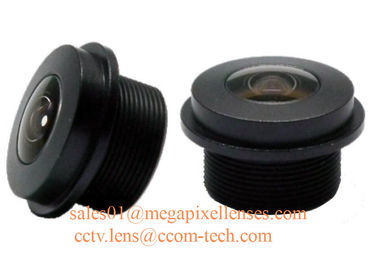

1/3" 3.2mm F2.5 Megapixel M12x0.5 mount 100degree Waterproof Wide Angle Lens, IP68 automotive camera lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 13032MP-M12 13032MPF-M12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | Automotive Camera Lens | Resolution: | Megapixel |
|---|---|---|---|
| F.O.V.(D*H*V): | 1/3" 100°*99°*68°, 1/3.7" 100°*78°*55°, 1/4" 90°*68°*50° | Materials: | Glass + Metal |
Automotive Camera Lens
- Very wide field angle, can be used as front view, side view, rear view lens.
- Suit for 1/3", 1/3.7", 1/4" sensors.
- All glass lenses, Operating temperature is from -40℃ to 105℃, suit for automotive cars.
- Wear-resistant and waterproof and multi-layer coating, provide great protection and transmittance.
- Very short total length, suit for compact assembly space.
1/3" 3.2mm F2.5 Megapixel M12x0.5 Mount 100degree IP68 Waterproof Automotive Camera Lens, M12/M10 option
MODEL 13032MPF-M12/13032MPF-M10
IMAGE FORMAT 1/3"
MAX IMAGE CIRCLE Φ4.8mm
FOCAL LENGTH(mm) 3.2
FOV 1/3" 100°(D)*99°(H)*68°(V), 1/3.7" 100°(D)*78°(H)*55°(V), 1/4" 90°(D)*68°(H)*50°(V)
RESOLUTION MP
APERTURE 2.5
TV DISTORTION <-36%
MOUNT(mm) M12x0.5/M10x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.1
M.B.F.(mm) 2.5
T.T.L.(mm) 12.4
DIMENSION(mm) Φ16x10.3
OPERATING TEMPERATURE -40℃ ~ +105℃
IR-CUT FILTER: 650nm±20nm at 50% normalized transmittance
AR COATING Multi-layer BBAR coating(Typical reflectivity <1% on front surface, <0.5% on others)
INGRESS PROTECTION IP68
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- M12/M10 mount option
