Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
---|---|---|---|
F.O.V.(D*H*V): | 1/2.7”: 180°*124°*89°, 1/2.9”(IMX323): 150°*124°*65° | Constructure: | 6G/6G+IR |
High Definition Wide-Angle Lens
● Compact design popular for Dome and Bullet cameras
● IR-collection for Day & Night surveillance
● Super wide-angle with HFOV up to 124°
● IR cut option
● Mount option: M12x0.5

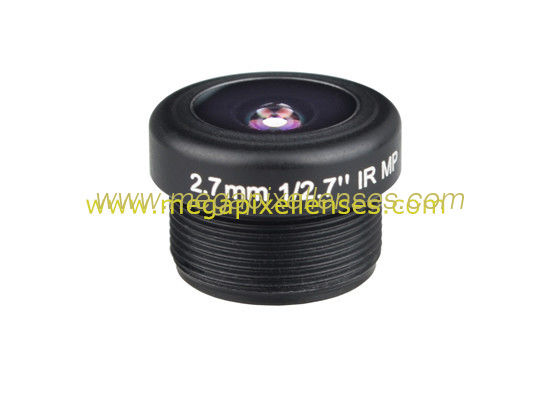

1/2.7" 2.7mm F2.2 1080P 3Megapixel M12*0.5 mount S-mount 180degrees super wide angle Lens for vehicle cctv cameras & visual doorbell, 2.7mm 1080P wide-anlge lens for IMX323/IMX290
Model 12702722MP
IMAGE FORMAT(H*V, D) 5.37*4.04, 6.72
SENSOR 1/2.7" CCD/CMOS
FOCAL LENGTH 2.7mm
RESOLUTION 3MP
F.O.V.(D*H*V) 1/2.7”: 180°*124°*89°, 1/2.9”(IMX323): 150°*124°*65°
APERTURE F2.2
EFFECTIVE APERTURE Φ9.2mm(front), Φ4.8mm(rear)
OPTICAL DISTORTION <-36%
IRIS Fixed
M.O.D. 0.1m
MOUNT M12XP0.5
B.F.L. 5.35mm (in air)
T.T.L. 14.86mm
C.R.A. 14.9°
R.I. >50%
LENS CONSTRUCTURE 6-5
DIMENSION Φ14*10mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
