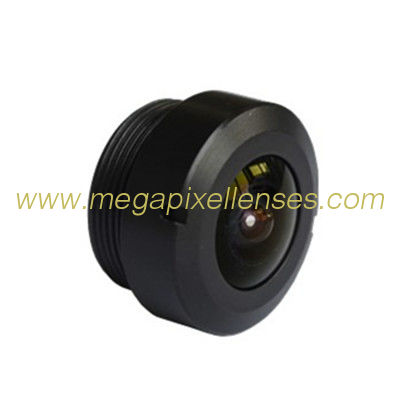

1/2.8" 1.25mm Megapixel 1080P M12x0.5 Mount 190degree IR Fisheye Lens, visual doorbell vehicle camera lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1280125MP 1280125MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
| Minimum Order Quantity: | 100pcs |
Detailed Product Description
| Board Lens: | M12 Mount Fisheye Lens | Resolution: | 2MP 1080P |
|---|---|---|---|
| FOV: | 190degree | Materials: | Metal + Glass |
High Definition Fisheye Lens
● High resolution
● Various applications meet your requirements
● Compact design with cost-effective performance
● Custom design
● Super wide-angle with FOV up to 190° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option
1/2.8" 1.25mm F2.0 1080P 2Megapixel M12*0.5 mount S-mount 190degrees super wide angle IR-Cut Fisheye Lens for vehicle cctv cameras & visual doorbell, 1.25mm 1080P mini fisheye lens, Ok to use on IMX377
MODEL 1280125MPF
IMAGE FORMAT 1/2.8" (image circle Φ3.93mm)
FOCAL LENGTH(mm) 1.25
FOV(D*H*V): 190°*190°*190°
RESOLUTION MP
APERTURE 2.0
MOUNT(mm) M12x0.5
F-theta distortion -6%
Relative illumination: >45%
CRA: <9.6°
IRIS Fixed
B.F.L.(mm) 2.75 (0.3mm filter + 0.4mm cover glass)
T.T.L.(mm) 11.8
M.O.D.: 0.1m
LENS DIMENSION Φ14*9.97mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
