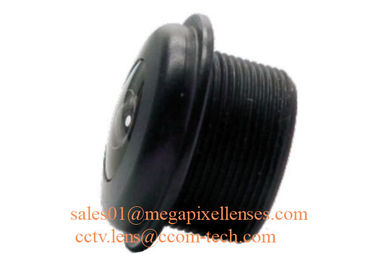

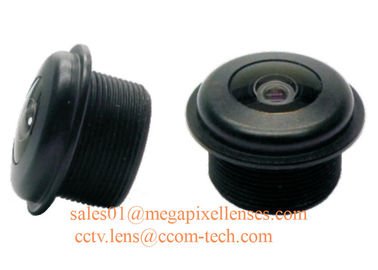

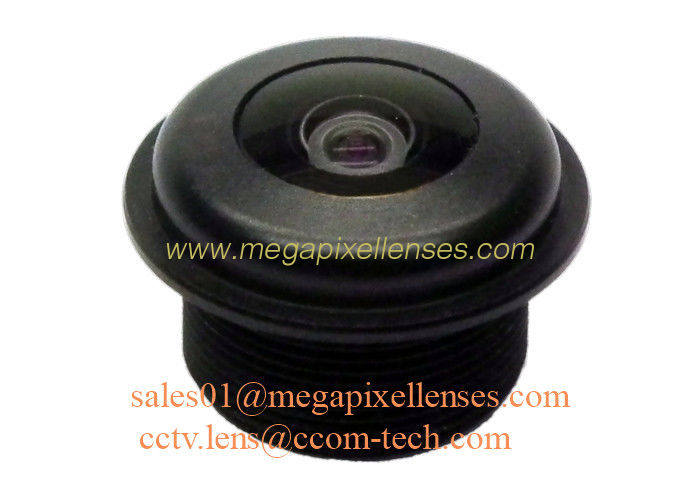

1/3" 1.6mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 13016MPF-M12(B) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Fisheye Lens/Automotic Camera Lens | Resolution: | 1.3MP |
|---|---|---|---|
| FOV: | 200°(D)*188°(H)*134°(V) | Materials: | Metal + Glass |
Automotic Camera Lens
- Very wide field angle FOV>180°, can be used as front view, side view, rear view lens.
- Suit for 1/3", 1/3.7", 1/4" sensors.
- All glass lenses, Operating temperature is from -40℃ to 105℃, suit for automotive cars.
- Wear-resistant and waterproof and multi-layer coating, provide great protection and transmittance.
- Very short total length, suit for compact assembly space.
1/3" 1.6mm F2.5 Megapixel M12x0.5 or M10x0.5 Mount 200degree IP68 Waterproof Automotive Camera Lens, 1.6mm Mini Fisheye Lens for 180º 360º panoramic cameras
MODEL 13016MPF-M12(B)
IMAGE FORMAT 1/3"
MAX IMAGE CIRCLE Φ5.00mm
FOCAL LENGTH(mm) 1.6
FOV 1/3" 200°(D)*188°(H)*134°(V); 1/3.7" 200°(D)*151°(H)*108°(V); 1/4" 170°(D)*138°(H)*102°(V)
RESOLUTION MP
APERTURE 2.5
TV DISTORTION <-98%
MOUNT(mm) M12x0.5 (M10x0.5 optional)
IRIS Fixed
M.O.D.(m) 0.15
B.F.L.(mm) 3.51
M.B.F.(mm) 2.97
T.T.L.(mm) 12.92
DIMENSION(mm) Φ16x9.95
OPERATING TEMPERATURE -40℃ ~ +105℃
IR-CUT FILTER: 650nm±20nm at 50% normalized transmittance
AR COATING Multi-layer BBAR coating(Typical reflectivity <1% on front surface, <0.5% on others)
INGRESS PROTECTION IP68
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- M12/M10 mount option
- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
