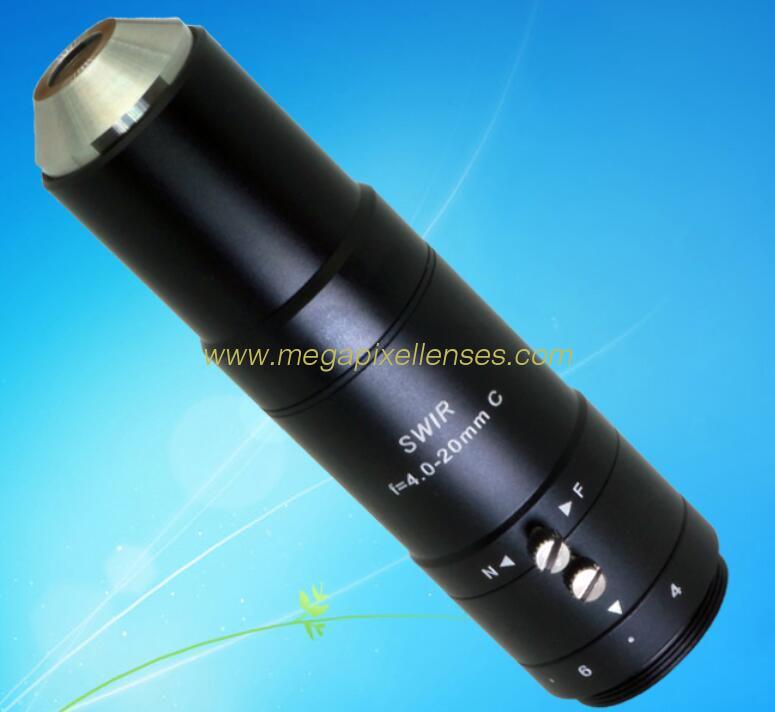

High-temp. Short Wavelength 1/2.7" f4-20mm F4.0 3MP IR Lens C mount Vari-focal Lens for Metallurgy, furnace lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | SWIR0420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| IR Lens: | Short Wavelength IR Lens | Wavelength: | 900~1700nm |
|---|---|---|---|
| Focal Length: | 4-20mm | Aperture: | F4.0 |
High Temp. Short Wavelength 1/2.7" 4-20mm F4.0 3MP C mount 800~1700nm IR Lens
MODEL: SWIR0420
SENSOR FORMAT 1/2.7”
FOCAL LENGTH 4-20mm
Wavelength 900-1700nm
F.O.V. (HxV) W 39.5°x30.2°, T 5.0°x3.74°
APERTURE F4.0
RESOLUTION 3MP
FOCUS Manual with lock (W/Lock)
ZOOM Manual with lock (W/Lock)
W.D. 0.2mm
MOUNT C
B.F.L. 17.53mm
CONSTRUCTURE Aluminium Alloy+10G, or +5Gxn(1-3)
NET WEIGHT Lens 116g, or +extender 185.4gxn
DIMENSION Φ29x99mm +250mmxN (can add 1-3pcs extender of 250mm)
Tip:
- For more IR lenses, please feel free to contact us at sales01@megapixellenses.com
