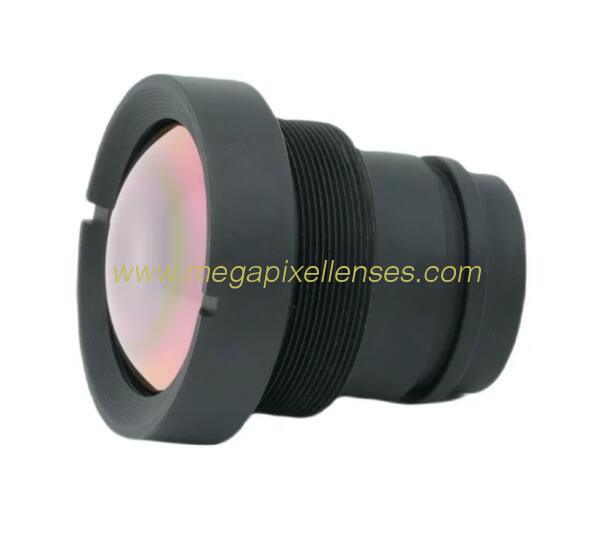

Long Wavelength 8~12um f4.1mm F1.0 IR Lens M22x0.5 mount Prime Lens for sensor 640*512 12um
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | LWIR04110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| IR Lens: | Long Wavelength IR Lens | Wavelength: | 8~12um |
|---|---|---|---|
| Focal Length: | 4.1±5% Mm | Aperture: | F1.0±10% |
Long Wavelength 4.1mm F1.0 8~12um IR Lens for sensor 640*512 12um, Prime Lens f4.1mm F1.0 M22x0.5 mount IR Lens
Model no.: LWIR04110
Sensor: 640*512 um
Transmission(8-12μm): ≥88%
Wavelength: 8~12um
Focal length: 4.1mm
F.R.: >0.5m
Aperture: F1.0
Mount: M22×0.5-6g
Distortion: ≤45%
F.O.V (D*H*V): 130°*102°*83°
RI: ≥80%
F.F.L.: 20.15mm
M.B.F.L.: 7mm
Dimension: Ø27 x L27mm
N.W.: 25g
Sealing: IP67 (first mirror glass)
