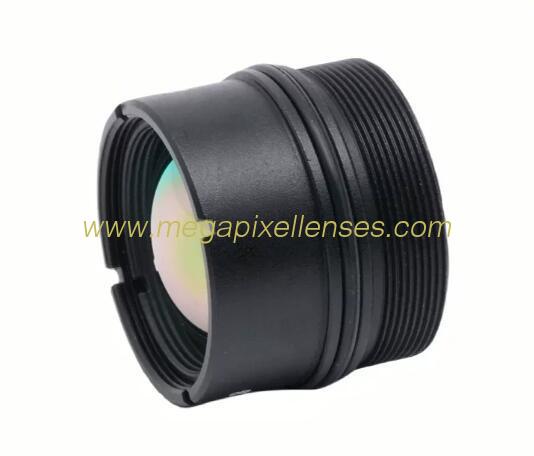

Long Wavelength 8~12um f13mm F1.0 IR Lens M20x0.5 mount Prime Lens for sensor 640*512 12um
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | LWIR1310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| IR Lens: | Long Wavelength IR Lens | Wavelength: | 8~12um |
|---|---|---|---|
| Focal Length: | 13mm | Aperture: | F1.0 |
Long Wavelength 13mm F1.0 8~12um IR Lens for sensor 640*512 12um, Prime Lens f13mm F1.0 M20x0.5/M34x0.5 mount IR Lens
Model no.: LWIR1310-M20
Sensor: 640*512 um
Transmission(8-12μm): ≥86%
Wavelength: 8~12um
Focal length: 13mm
F.R.: >1m
Aperture: F1.0
Mount: M20×0.5-6g
Distortion: ≤-1.5%
F.O.V (D*H*V): 40.7°*32.6°*26.3°
RI: ≥75%
F.F.L.: 8.0mm
M.B.F.L.: 5.5mm
Dimension: Ø20 x L16.5mm
Sealing: IP67 (first mirror glass)
Model no.: LWIR1310-M34
Sensor: 640*512 um
Transmission(8-12μm): ≥86%
Wavelength: 8~12um
Focal length: 13mm
F.R.: Fixed
Aperture: F1.0
Mount: M34×0.5-6g
Distortion: ≤-8%
F.O.V (D*H*V): 40.7°*32.6°*26.3°
RI: ≥80%
F.F.L.: 12mm
M.B.F.L.: 7.5mm
Dimension: Ø34 x L22mm
Sealing: IP67 (first mirror glass)
Tip:
- For more IR lenses, please feel free to contact us at sales01@megapixellenses.com
