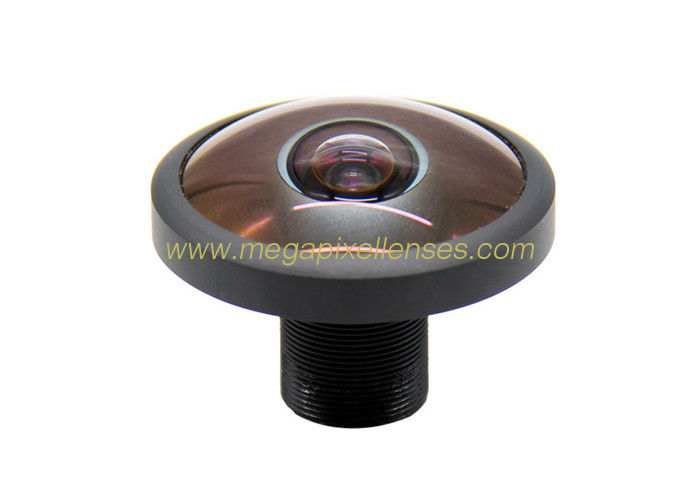

1/2.3" 3.0mm F1.8 13Megapixel M12x0.5 mount 148degree wide-angle lens for IMX078
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 123030MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 14MP |
|---|---|---|---|
| FOV(D*H*V): | 148°*126°*68° | Lens Constructure: | 8G/8G+IR |
1/2.3" 3.0mm F1.8 13MP 1080P S-mount M12x0.5 mount 148degree wide angle board lens for 1/2.3" 1/2.7" 1/3" sensors etc.
Model: 123030MPF
SENSOR SIZE 1/2.3" (IMX078)
FOCAL LENGTH(EFL) 3.0mm
F.O.V. (D*H*V) 148°*126°*68°;
RESOLUTION 8MP~13MP
APERTURE F1.8
F-THETA DISTORTION <18%
R.I. >98%
C.R.A. <7°
MOUNT M12x0.5
B.F.L.(M) 5.89mm
T.T.L. 29.46mm
LENS CONSTRUCTURE 8G+IR-Cut
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
