CCTV Optical Master to Provide Best Video Solutions
Place of Origin: | China |
Brand Name: | CCOM LENS |
Model Number: | 16030MP 16030MPF |
Minimum Order Quantity: | 100pcs |
---|---|
Packaging Details: | Standard |
Delivery Time: | 2-7 work days |
Payment Terms: | T/T, Western Union, Moneygram, Paypal |
Supply Ability: | Samples available |
Board Lens: | M12 Mount Low-distortion Lens | Resolution: | Megapixel |
---|---|---|---|
Distortion: | <-1% | Lens Constructure: | 3P/3P+IR |
Highlight: | High shot meter lens,non-distortion lens,M12x0.5 Board Lens |

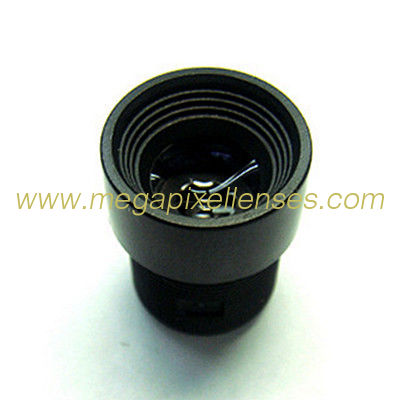

1/6" 3.0mm F2.0 Megapixel 60degree non-distortion M12*0.5 mount lens for computer/electronic video devices, 3.0mm M12 lens for 1/6" 1/7" sensors
Model: 16030MPF
SENSOR SIZE: 1/6"
FOCAL LENGTH(mm): 3.0
F.O.V.: 60°
RESOLUTION: MP
APERTURE: F2.0
MOUNT(mm): M12xP0.5
IRIS: Fixed
M.O.D.: 20cm
B.F.L.(mm) 2.28
T.T.L.(mm): 19.78
LENS COMPOMEMT: 3P+IR
DIMENSION: Φ14x17.5mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
