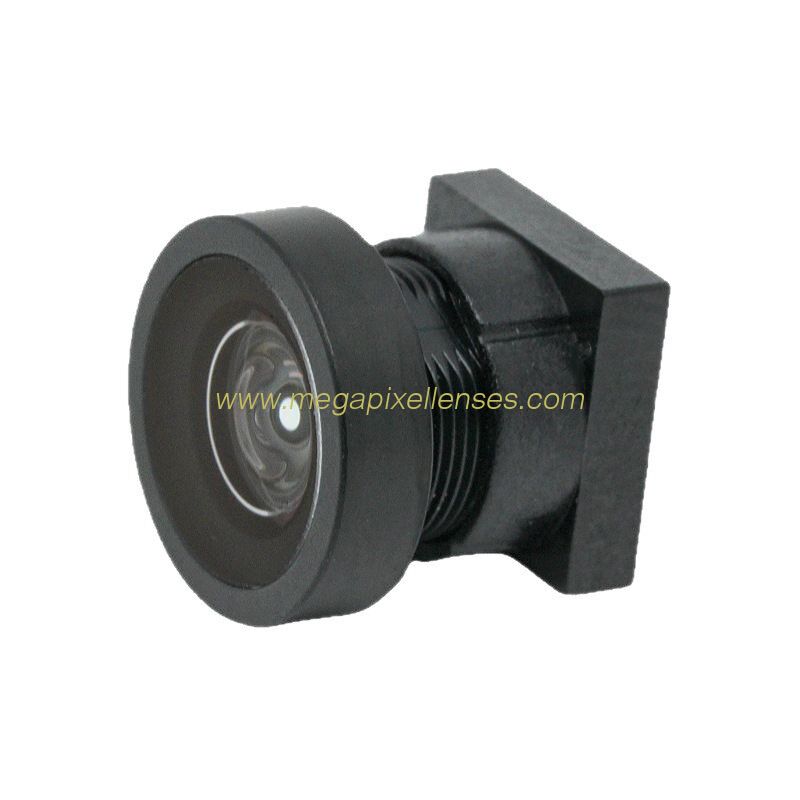

1/4" 1.4mm F2.4 Megapixel M7x0.35 mount 141Degree wide angle lens for 720P JX-H62
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14014MP-M7 14014MPF-M7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7 Wide Angle Lens | Resolution: | MP |
|---|---|---|---|
| FOV(D): | 141° | Constructure: | 1G3P/1G3P+IR |
| Highlight: | megapixel wide angle non distortion lens,megapixel M7*0.35 mount lens,special lens |
||
1/4" 1.4mm F2.4 Megapixel 720P 141degree M7*0.35 mount wide angle lens for JX-H62
MODEL: 14014MPF-M7
IMAGE FORMAT: 1/4"
MAX IMAGE CIRCLE: Φ5.0mm
FOCAL LENGTH(mm): 1.4
F.O.V.(DxHxV): 141°x122°x70°
RESOLUTION: MP
DISTORTION: <-28%
APERTURE: F2.4
MOUNT(mm): M7x0.35
B.F.L.(mm): 2.72
T.T.L.(mm): 9.10±0.3
C.R.A.: <29.8°
R.I.: 45%
LENS COMPOMEMT: 1G3P+IR
Tips:
- M7 mount holder optional
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
