CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions

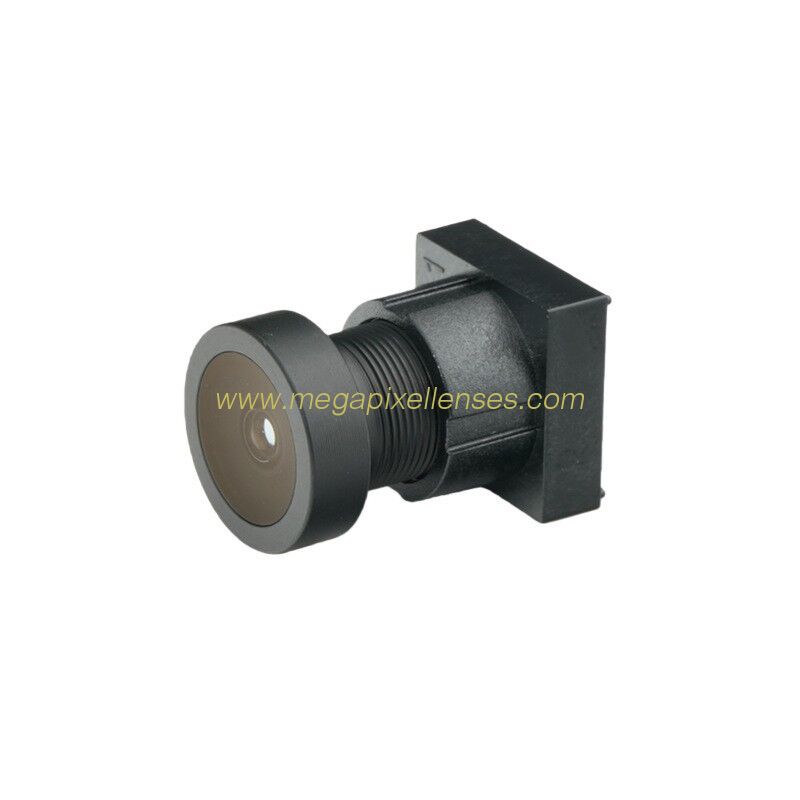

1/2.7" 3.1mm F2.4 3Megapixel 140Degree M7x0.35 mount wide-angle lens for OV4689
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127031MP-M7 127031MPF-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7 Mount Lens | Resolution: | 3MP |
|---|---|---|---|
| F.O.V.(D): | 140° | Structure: | 4G/4G+IR |
1/2.7" 3.1mm F2.4 3Megapixel 140D M7x0.35 mount wide angle lens, M7 mount cctv lens
MODEL 127031MPF-M7
IMAGE FORMAT 1/2.7"
MAX IMAGE CIRCLE Φ6.6mm
FOCAL LENGTH(mm) 3.1
FOV(DxHxV) 140°x116°x60°
RESOLUTION 3MP
APERTURE 2.4
OPTICAL DISTORTION
TV DISTORTION <-23%
MOUNT(mm) M7x0.35
IRIS Fixed
B.F.L. 5.4mm
T.T.L. 14.3mm
C.R.A. <22.6°
R.I. >50%
LENS DIMENSION Φ10*9.6mm
Constructure 4G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
