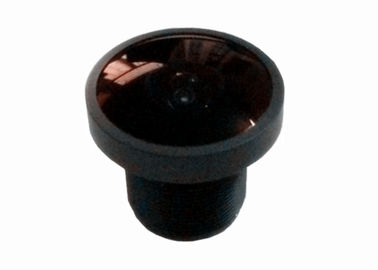

1/3" 1.35mm 3Megapixel S mount M12 195degree Fisheye Lens for AR0330, Drone UAV 360VR lens

1/3" 1.35mm 3Megapixel S mount M12 195degree Fisheye Lens for AR0330, Drone UAV 360VR lens

    • 1/3" 1.35mm 3Megapixel S mount M12 195degree Fisheye Lens for AR0330, Drone UAV 360VR lens
    • 1/3" 1.35mm 3Megapixel S mount M12 195degree Fisheye Lens for AR0330, Drone UAV 360VR lens
    • 1/3" 1.35mm 3Megapixel S mount M12 195degree Fisheye Lens for AR0330, Drone UAV 360VR lens
  • 1/3" 1.35mm 3Megapixel S mount M12 195degree Fisheye Lens for AR0330, Drone UAV 360VR lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 130135MP 130135MPF

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Board Lens: M12 Mount Fisheye Lens Resolution: 3MP
    FOV: 195degree Materials: Metal + Glass

    1/3" 1.35mm F2.0 3Megapixel 1080P M12*0.5 mount 195 degree Super Fisheye Lens for AR0330, smart home camera lens, Drone UAV 360VR lens



    MODEL 130135MPF
    IMAGE FORMAT 1/3"

    IMAGE CIRCLE Φ3.2mm
    FOCAL LENGTH(mm) 1.35
    FOV(D*H*V): 195°*195°*195°
    RESOLUTION 3MP
    APERTURE 2.0
    MOUNT(mm) M12x0.5
    TV DISTORTION <-110%
    R.I. >96%
    C.R.A. <15.8°
    IRIS Fixed
    B.F.L.(M) 3.76mm
    T.T.L 20.3mm
    LENS DIMENSION Φ18*16.54mm
    STRUCTURE 6G+IR filter



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
