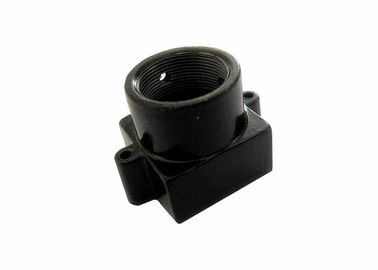

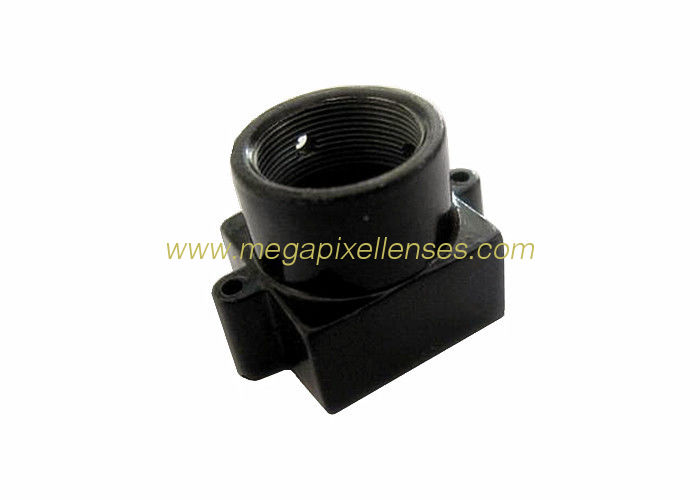

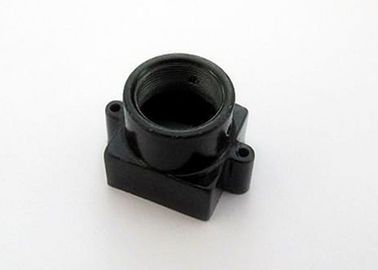

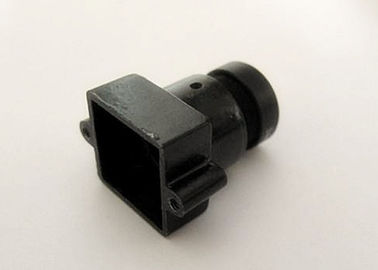

Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 14.5mm/16.5mm

Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 14.5mm/16.5mm

    • Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 14.5mm/16.5mm
    • Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 14.5mm/16.5mm
    • Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 14.5mm/16.5mm
  • Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 14.5mm/16.5mm

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: HD29-20(A) / HD29-20(B)

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Lens Holder: M12x0.5 Mount Lens Holder Material: Metal

    Metal M12x0.5 Mount Lens Holder for CCTV Board Lenses, fixed pitch 20mm, total height 10mm/14.5mm/16.5mm option



    Model: HD29-20(A)

    MOQ: 100pcs

    Outer size (LxWxH): 16.3mm x 16.3mm x 14.5mm (10mm height optional)
    Inner size (LxWxH): 14.6mm x 14.6mm x 7.3mm
    Mount: M12x0.5
    Installation hole diameter: 20mm (the distance between two screws 20mm)

    Material: Metal



    Model: HD29-20(B)

    MOQ: 100pcs

    Outer size (LxWxH): 17mm x 17mm x 16.5mm
    Inner size (LxWxH): 15mm x 15mm x 8.5mm
    Mount: M12x0.5
    Installation hole diameter: 20mm (the distance between two screws 20mm)

    Material: Metal



    Tips:

    - 10mm/14.5mm/16.5mm optional

    - For more lens accessories, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com.
