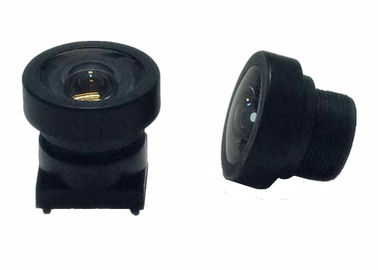

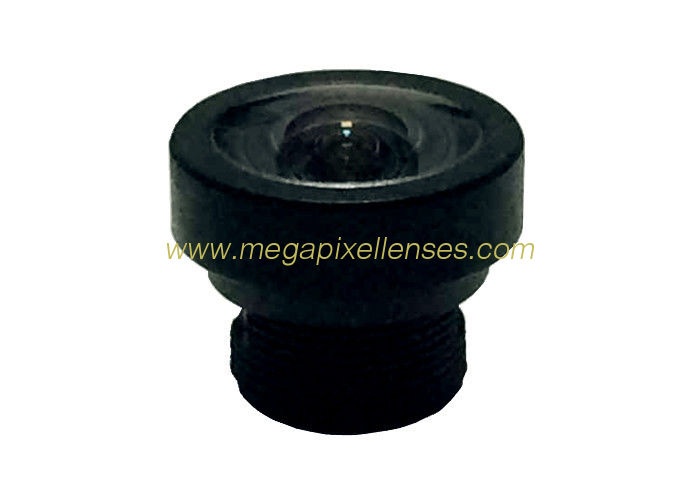

1/5" 1.02mm F2.2 VGA M7x0.35 mount 131degree Wide Angle Lens for OV7740
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 150102-M7 150102F-M7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7 Mount Wide Angle Lens | Resolution: | 0.3MP |
|---|---|---|---|
| FOV(DxHxV): | 131°*111°*88° | Lens Constructure: | 2G2P/2G2P+IR |
1/5" 1.02mm F2.2 VGA M7*0.35 Mount 131degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 1.02mm M7 lens for OV7740
MODEL 150102-M7
SENSOR FORMAT 1/5"
SENSOR SIZE 1/5” OV7740
FOCAL LENGTH(EFL) 1.02mm
F.O.V.(D*H*V) 131°*111°*88°
RESOLUTION VGA/0.3MP
APERTURE F2.2
TV DISTORTION <-5.2%
MOUNT M7XP0.35
B.F.L. 2.25mm
F.B.L. 1.71mm
T.T.L. 9.5mm
LENS CONSTRUCTURE 2G2P+IR(650nm)
R.I. >88%
C.R.A. <-12°
Tips:
- ***F: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- M12 mount is optional.
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
