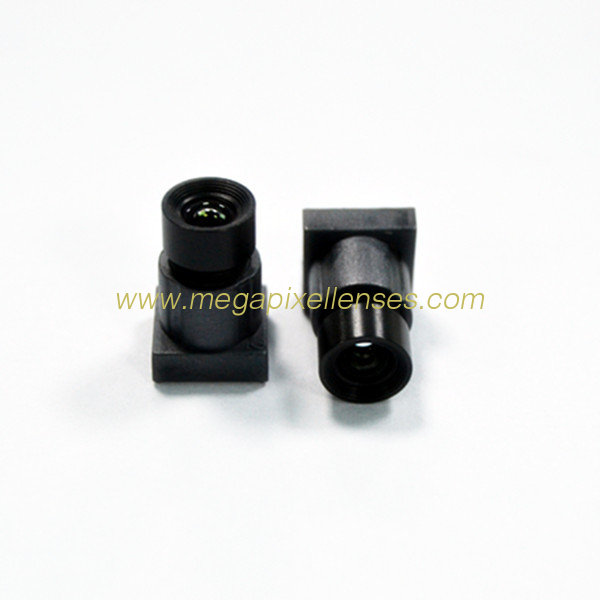

1/2.3" 5.6mm F2.6 12MP Megapixel M7x0.35 mount video lens for IMX577, small metal 4K lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 123056MPF-M7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7 Mount Lens | Resolution: | 12MP |
|---|---|---|---|
| FOV(DxHxV): | 84°*66°*49° | Lens Constructure: | 4G/4G+IR |
1/2.3" 5.6mm F2.6 12MP Megapixel M7x0.35 Mount Mini Lens for IMX577, 4K M7 metal lens for Automobile data recorder/face recognition/automobile active security system etc.
Model 123056MPF-M7
IMAGE FORMAT 1/2.3"
MAX IMAGE CIRCLE Ø 8.26mm
FOCAL LENGTH 5.6mm
F.O.V (D*H*V) 84°*66°*49°
DISTORTION -11%
APERTURE F2.6
RESOLUTION 12MP
MOUNT M7XP0.35
IRIS Fixed
B.F.L. 7.36mm
F.B.L. 6.59mm
T.T.L. 15.69 mm
R.I. >58%
C.R.A. <13°
DIMENSION Φ8×9.3mm
LENS COMPOMENT 4G+IR
CUT FREQUENCY AT 50% 650±10nm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
